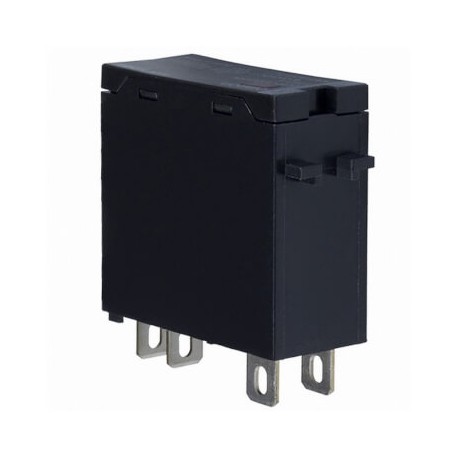

OMRON G3R-ODX02SN-UTU 5-24VDC G3R-ODX02SN-UTU 5-24VDC G3R 1131M G3RODX02SNUTU524DC OMRON Output 0.01-2A 12-24vdc photocoupler View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3R-ODX02SN-UTU 5-24VDC G3R 1131M G3RODX02SNUTU524DC OMRON Output 0.01-2A 12-24vdc photocoupler

G3R-ODX02SN-UTU 5-24VDC

G3R 1131M

G3RODX02SNUTU524DC

OMRON

20 Pcs.

Output 0.01-2A 12-24vdc photocoupler Solid state relay, plug-in, 5-pin, 1-pole, 2 A, 4-60 VDC

Automation > Solid state relay
G3R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron G3R-ODX02SN-UTU 5-24VDC Output 0.01-2A 12-24vdc photocoupler is a compact interface solid-state relay used to isolate and switch low-current control signals in automated control systems. These relays protect sensitive control electronics from voltage spikes while bridging logic controllers to field actuators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): DC
  • Voltage type for actuating (EF008242): DC
  • Modular version (EF001126): Yes
  • Rated operation current Ie at AC-1 (EF006069): 2 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 2 A
  • Operating voltage DC (EF008208): 4 V
  • Rated control supply voltage DC (EF003980): 5 V

More info

▲
ApplicationInterfaceNumber of phases1Mounting methodWith plug-in socketTerminal typePlug-inComplete with socketLED indicatorRated operational voltage, DC4-60 VOperating voltage range, DC4-60 VRated operation current Ie at AC-12 AProduct Height (unpacked)29 mmProduct Width (unpacked)13 mmProduct Depth (unpacked)28 mmSupply voltage DC5-24 VControl current max.8 mAMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhotocouplerSwitching at zero-crossing
