View larger
Images are for illustrative purposes only. Please refer to data sheet for details

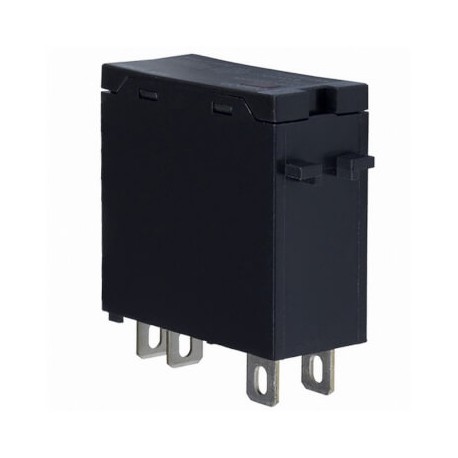

G3R-OA202SZN-UTU 5-24VDC G3R 1130B G3ROA202SZNUTU524DC OMRON Output 0.05-2A 75-264vac fototriac UTU
G3R-OA202SZN-UTU 5-24VDC
G3R 1130B
G3ROA202SZNUTU524DC
OMRON
20 Pcs.
Output 0.05-2A 75-264vac fototriac UTU
Solid state relay, plug-in, 5-pin, 1-pole, 2 A, 75-264 VAC
Automation > Solid state relay
G3R
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ApplicationInterfaceNumber of phases1Mounting methodWith plug-in socketTerminal typePlug-inComplete with socketLED indicatorRated operational voltage, AC100-240 VOperating voltage range, AC75-264 VRated operational voltage, DC75-264 VOperating voltage range, DC75-264 VRated operation current Ie at AC-12 AProduct Height (unpacked)29 mmProduct Width (unpacked)13 mmProduct Depth (unpacked)28 mmSupply voltage DC5-24 VControl current max.15 mAMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossing
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Voltage type for actuating (EF008242) | AC |
| Switching at zero-crossing (EF011956) | Yes |
| Modular version (EF001126) | Yes |
| Rated operation current Ie at AC-1 (EF006069) | 2 A |
| Number of phases (EF000351) | 1 |
| Rated operation current Ie at AC-3 (EF006070) | 2 A |
| Rated control supply voltage DC (EF003980) | 5 V |
| Operating voltage AC 50 Hz (EF008206) | 4 V |
| Operating voltage AC 60 Hz (EF008207) | 4 V |
