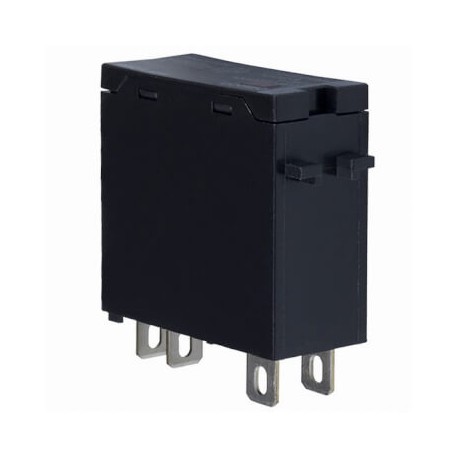

OMRON G3R-IAZR1SN-UTU 100-240VAC G3R-IAZR1SN-UTU 100-240VAC G3R 1124H G3RIAZR1SNUTUAC100240 OMRON Input 15mA 100-240vac photocoupler View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3R-IAZR1SN-UTU 100-240VAC G3R 1124H G3RIAZR1SNUTUAC100240 OMRON Input 15mA 100-240vac photocoupler

G3R-IAZR1SN-UTU 100-240VAC

G3R 1124H

G3RIAZR1SNUTUAC100240

OMRON

20 Pcs.

Input 15mA 100-240vac photocoupler Solid state relay

Automation > Solid state relay
G3R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron input photocoupler relay, designated as G3R-IAZR1SN-UTU 100-240VAC, isolates control circuits from field-level input signals in automated industrial systems. These interface components protect sensitive logic controllers by providing galvanic isolation against voltage spikes and electrical noise.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): DC
  • Voltage type for actuating (EF008242): DC
  • Modular version (EF001126): Yes
  • Rated operation current Ie at AC-1 (EF006069): 0.1 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 0.1 A
  • Rated control supply voltage AC 60 Hz (EF003979): 100 V
  • Operating voltage DC (EF008208): 4 V
  • Rated control supply voltage AC 50 Hz (EF003978): 100 V

More info

▲
ApplicationInterfaceNumber of phases1Mounting methodWith plug-in socketTerminal typePlug-inComplete with socketLED indicatorRated operational voltage, DC4-32 VOperating voltage range, DC4-32 VRated operation current Ie at AC-10.1 AProduct Height (unpacked)29 mmProduct Width (unpacked)13 mmProduct Depth (unpacked)28 mmSupply voltage AC100-240 VControl current max.15 mAMust operate voltage max.60 VMust release voltage min.20 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhotocoupler

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
