View larger
Images are for illustrative purposes only. Please refer to data sheet for details

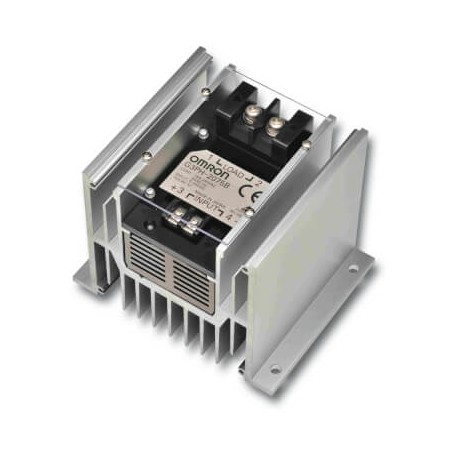

G3PH-5150B 5-24VDC G3PH1005D G3PH5150BDC524 OMRON 150A 180-480vac Panel With disip. Step-by-Zero Fotoaclopad..
G3PH-5150B 5-24VDC
G3PH1005D
G3PH5150BDC524
OMRON
1 Pcs.
150A 180-480vac Panel With disip. Step-by-Zero Fotoaclopador Indicator
Solid State Relay, surface mounting, max. load: 150 A, 180 to 480 VAC
Automation > Solid state relay
G3N
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodScrewTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC180-480 VOperating voltage range, AC150-528 VRated operation current Ie at AC-1150 ASupply voltage DC5-24 VControl current max.5 mAMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhotocouplerSwitching at zero-crossingCommunication port(s)None
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | DC |
| Voltage type for actuating (EF008242) | DC |
| Switching at zero-crossing (EF011956) | Yes |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1 (EF006069) | 150 A |
| Number of phases (EF000351) | 1 |
| Operating voltage DC (EF008208) | 180 V |
| Rated control supply voltage DC (EF003980) | 5 V |
