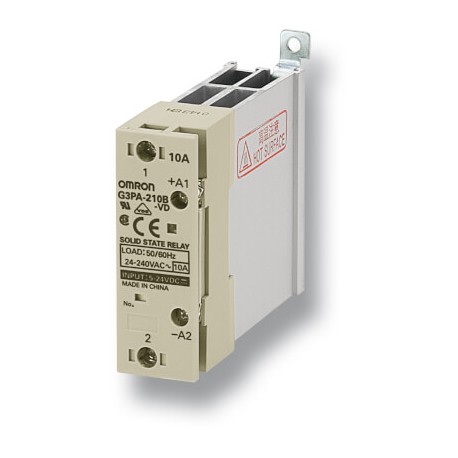

OMRON G3PA-450B-VD-2 12-24VDC G3PA-450B-VD-2 12-24VDC G3PA1062A G3PA450BVD21224DC OMRON SSR, 1 ph, with heat sink, 50 TO (180-400 VAC), st.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PA-450B-VD-2 12-24VDC G3PA1062A G3PA450BVD21224DC OMRON SSR, 1 ph, with heat sink, 50 TO (180-400 VAC), st..

G3PA-450B-VD-2 12-24VDC

G3PA1062A

G3PA450BVD21224DC

OMRON

1 Pcs.

SSR, 1 ph, with heat sink, 50 TO (180-400 VAC), step-by-zero, 12-24 VDC SSR, 1 ph, with heatsink, 50 A (180-400 VAC), zero-pass, 12-24 VDC Solid state relay, DIN rail/surface mounting, 1-pole, 50 A, 440 VAC max

Automation > Solid state relay
G3PA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Solid State Relays with exchangeable power cartridge

Optimum design of the heat sink has contributed to the downsizing of this product. The power element cartridges of the G3PA are easily replaceable for easy maintenance. G3PA can be mounted on a DIN-rail or using screws.

  • 20-60 A output current
  • 24-480 VAC output voltages
  • Applicable with 3-phase loads
  • Replaceable power element cartridges

Ordering information

Rated output load

Zero cross function

Rated input voltage

Operating voltage range

Input
current impedance

Voltage level

Size in mm
(H×W×D)

Order code

Must operate voltage

Must release voltage

24 to 240 VAC

40 A

Yes

5 to 24 VDC

4 to 30 VDC

7 mA max.

4 VDC max.

1 VDC min.

100×47×100

G3PA-240B-VD DC5-24

60 A

100×110×100

G3PA-260B-VD DC5-24

40 A

24 VAC

19.2 to 26.4 VAC

1.4 kΩ ±20%

19.2 VAC max.

4.8 VAC min.

100×47×100

G3PA-240B-VD AC24

60 A

100×110×100

G3PA-260B-VD AC24

180 to 400 VAC

20 A

12 to 24 VDC

9.6 to 30 VDC

7 mA max.

9.2 VDC max.

1 VDC min.

100×37×100

G3PA-420B-VD DC12-24

30 A

100×47×100

G3PA-430B-VD DC12-24

200 to 480 VAC

20 A

100×37×100

G3PA-420B-VD-2 DC12-24

30 A

100×47×100

G3PA-430B-VD-2 DC12-24

50 A

100×110×100

G3PA-450B-VD-2 DC12-24

Accessories

Replacement parts: Power device cartridges

Load voltage range

Carry current

Applicable SSR

Order code

19 to 264 VAC

40 A

G3PA-240B-VD DC5-24

G32A-A40-VD DC5-24

G3PA-240B-VD AC24

G32A-A40-VD AC24

60 A

G3PA-260B-VD DC5-24

G32A-A60-VD DC5-24

G3PA-260B-VD AC24

G32A-A60-VD AC24

150 to 440 VAC

20 A

G3PA-420B-VD DC12-24

G32A-A420-VD DC12-24

30 A

G3PA-430B-VD DC12-24

G32A-A430-VD DC12-24

180 to 528 VAC

20 A

G3PA-420B-VD-2 DC12-24

G32A-A420-VD-2 DC12-24

30 A

G3PA-430B-VD-2 DC12-24

G32A-A430-VD-2 DC12-24

50 A

G3PA-450B-VD-2 DC12-24

G32A-A450-VD-2 DC12-24

G32A-D__ enables 2 line switching of 3 phase configurations

Current flow

Applicable SSR

Order code

20 A

G3PA-420B-VD, G3PA-420B-VD-2

G32A-D20

30 A

G3PA-430B-VD, G3PA-430B-VD-2,
G3PA-240B-VD, G3PA-240BL-VD

G32A-D40

40 A

Specifications

Isolation

Phototriac coupler

Indicator

Yes

Ambient temperature

Operating: −30 to 80°C

Load voltage range

200 to 480 VAC: 180 to 528 VAC

24 to 240 VAC: 19 to 264 VAC

180 to 400 VAC: 150 to 440 VAC

Output ON drop

1.6 V (RMS) max.

Operate time

0.5 of load power source cycle + 1 ms max. (DC input, -B models)

1.5 of load power source cycle + 1 ms max. (AC input)
1 ms max. (-BL models)

Release time

0.5 of load power source cycle + 1 ms max. (DC input)

1.5 of load power source cycle + 1 ms max. (AC input)

ETIM for 124814 Relays (EC002055)
Feature Name Feature Value
Voltage type (operating voltage) (EF005294) DC
Voltage type for actuating (EF008242) DC
Switching at zero-crossing (EF011956) Yes
Modular version (EF001126) No
Rated operation current Ie at AC-1 (EF006069) 50 A
Number of phases (EF000351) 1
Rated operation current Ie at AC-3 (EF006070) 50 A
Operating voltage DC (EF008208) 9.6 V
Rated control supply voltage DC (EF003980) 12 V
