View larger
Images are for illustrative purposes only. Please refer to data sheet for details

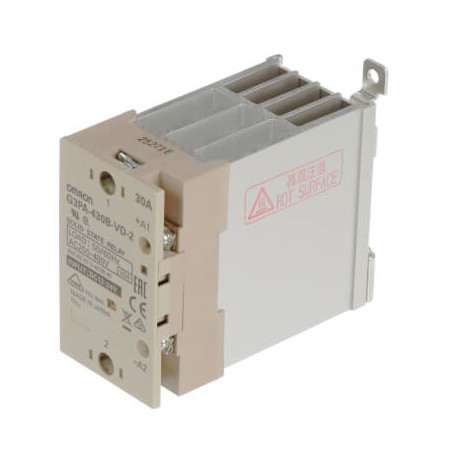

G3PA-430B-VD-2 12-24VDC G3PA1063M G3PA430BVD21224DC OMRON SSR, 1 ph, with heat sink, 30 (200-480 VAC), step-..
G3PA-430B-VD-2 12-24VDC
G3PA1063M
G3PA430BVD21224DC
OMRON
10 Pcs.
SSR, 1 ph, with heat sink, 30 (200-480 VAC), step-by-zero, 12-24 VDC
Solid state relay, DIN rail/surface mounting, 1-pole, 30 A, 440 VAC max
Automation > Solid state relay
G3PA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN railTerminal typeScrewLED indicatorRated operational voltage, AC201-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-130 ARated load current Close mounting24 APermissible I²t value1800 A²sProduct Height (unpacked)100 mmProduct Width (unpacked)47 mmProduct Depth (unpacked)100 mmSupply voltage DC12-24 VControl current max.7 mAMust operate voltage max.9.2 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossing
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | DC |
| Voltage type for actuating (EF008242) | DC |
| Switching at zero-crossing (EF011956) | Yes |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1 (EF006069) | 30 A |
| Number of phases (EF000351) | 1 |
| Rated operation current Ie at AC-3 (EF006070) | 30 A |
| Operating voltage DC (EF008208) | 9.6 V |
| Rated control supply voltage DC (EF003980) | 12 V |
