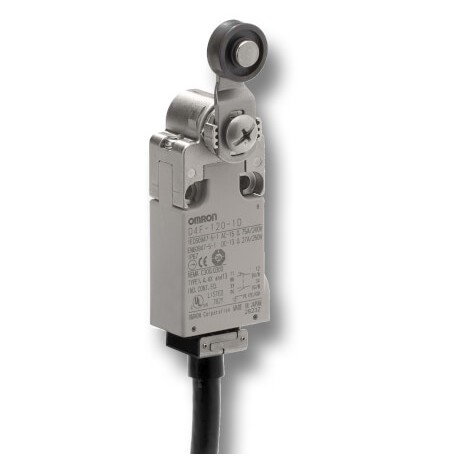

OMRON D4F-202-3R D4F-202-3R D4F 0022E D4F2023R OMRON Metal IP67 2NC Plunger Roller plunger 3m horiz. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4F-202-3R D4F 0022E D4F2023R OMRON Metal IP67 2NC Plunger Roller plunger 3m horiz.

D4F-202-3R

D4F 0022E

D4F2023R

OMRON

1 Pcs.

Metal IP67 2NC Plunger Roller plunger 3m horiz. Metalico IP67 2NC Embolo Roldana 3m horiz. Small Safety Limit Switch, 2NC slow-action, roller plunger, 3 m cable, horizontal cable exit

Automation > End switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Sealed position switches are utilized in demanding industrial environments where moisture, dust, and continuous mechanical stress require high ingress protection ratings. Manufactured by Omron, the D4F-202-3R features a metal enclosure with a pre-assembled cable and a roller plunger mechanism suited for safety applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing: Cuboid
  • Degree of protection (IP): IP67
  • Alignment of the control element: Roller cam straight
  • Type of control element: Plunger
  • Type of electric connection: With cable preassembled
  • Switching function: Slow-action switch
  • Housing material: Metal
  • Switching function latching: No
  • With status indication: No
  • Suitable for safety functions: Yes
  • Forced opening: Yes
  • Output electronic: No
  • Number of contacts as change-over contact: 0
  • Number of contacts as normally open contact: 0
  • Rated operation current Ie at AC-15, 230 V: 0.75 A
  • Rated operation current Ie at DC-13, 125 V: 0.55 A

More info

▲
  • Slim-size housing
  • Direct opening mechanism
  • Roller or plunger actuators
  • Pre-wired versions
