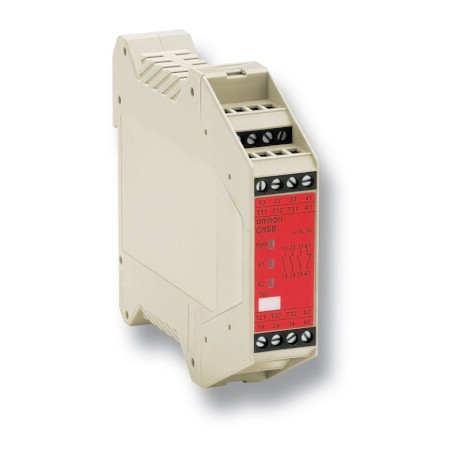

G9SB-3012-A AC/DC24 G9SB6008M G9SB3012AACDC24,1 OMRON Security module 3PST-NA SPST-NC, 22.5 mm 24vac/dc Auto..
G9SB-3012-A AC/DC24
G9SB6008M
G9SB3012AACDC24.1
OMRON
1 Pcs.
Automation > Device for monitoring of safety-related circuits
G9SA/B
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron G9SB-3012-A AC/DC24 security modules serve as dedicated safety control units within industrial environments, monitoring protective devices and ensuring safe machinery states during emergency events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 1 channel or 2 channels: + common
- 2 channels: Manual-reset
- 1 channel or 2 channels: + common
- 3PST-NO 3 safety contacts: SPST-NC
- 2 channels: Inverse
- 1 channel or 2 channels: + common
- 2 channels: Manual-reset
- 1 channel or 2 channels: + common
- Power supply voltage: 24 VAC/VDC: 24 VAC, 50/60 Hz, or 24VDC 24 VDC: 24 VDC
- Operating voltage range: 85 to 110% of rated power supply voltage
- Power consumption: 1.4 VA/1.4 W max.
- Input current: 25 mA max.
- Rated load: 250 VAC, 5 A
- Rated carry current: 5 A
- Response time 1: 10 ms max.
- Durability: Mechanical
More info
▲Slim-size safety unit
G9SB is a family of slender safety relay units, providing two safety contacts in a 17.5mm- and three safety contacts in a 22.5mm-wide housing.
- 17.5mm- and 22.5mm-wide housing
- 1- and 2-input channel units
- Manual and automatic reset units
- Certification up to PLe according to EN ISO 13849-1 depending on the application
Ordering information
Specifications
Power input
Inputs
Note:Indicates the current between terminals A1 and A2.
Contacts
Characteristics
Response time1 | ||||
