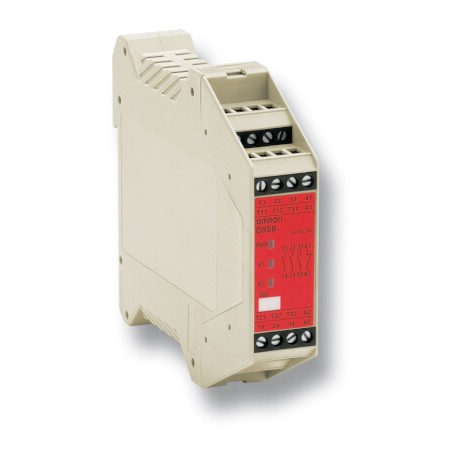

G9SB-2002-A AC/DC24 G9SB6003R G9SB2002AACDC24,1 OMRON Security module 2PST-NA 17,5 mm-24vac/dc Auto reset
G9SB-2002-A AC/DC24
G9SB6003R
G9SB2002AACDC24.1
OMRON
1 Pcs.
Automation > Device for monitoring of safety-related circuits
G9SA/B
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron G9SB-2002-A AC/DC24 is a security module designed to monitor emergency shutdown circuits and protective equipment in manufacturing systems. Safety modules protect operators by ensuring that hazardous machine operations halt immediately upon sensor activation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 1 channel or 2 channels: + common
- 2 channels: Manual-reset
- 1 channel or 2 channels: + common
- 3PST-NO 3 safety contacts: SPST-NC
- 2 channels: Inverse
- 1 channel or 2 channels: + common
- 2 channels: Manual-reset
- 1 channel or 2 channels: + common
- Power supply voltage: 24 VAC/VDC: 24 VAC, 50/60 Hz, or 24VDC 24 VDC: 24 VDC
- Operating voltage range: 85 to 110% of rated power supply voltage
- Power consumption: 1.4 VA/1.4 W max.
- Input current: 25 mA max.
- Rated load: 250 VAC, 5 A
- Rated carry current: 5 A
- Response time 1: 10 ms max.
- Durability: Mechanical
More info
▲Slim-size safety unit
G9SB is a family of slender safety relay units, providing two safety contacts in a 17.5mm- and three safety contacts in a 22.5mm-wide housing.
- 17.5mm- and 22.5mm-wide housing
- 1- and 2-input channel units
- Manual and automatic reset units
- Certification up to PLe according to EN ISO 13849-1 depending on the application
Ordering information
Specifications
Power input
Inputs
Note:Indicates the current between terminals A1 and A2.
Contacts
Characteristics
Response time1 | ||||
