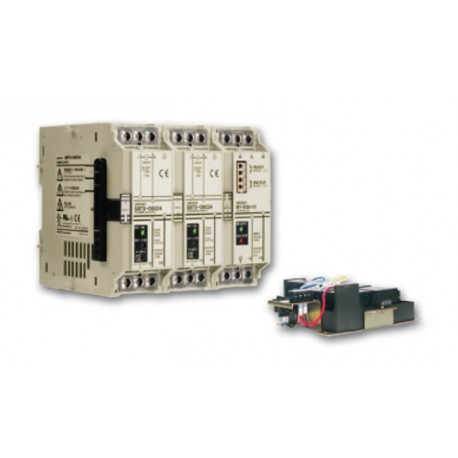

OMRON S82Y-TS01 S82Y-TS01 154754 S82YTS01 OMRON Support batteries for S8TS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S82Y-TS01 154754 S82YTS01 OMRON Support batteries for S8TS

S82Y-TS01

154754

S82YTS01

OMRON

1 Pcs.

Support batteries for S8TS Battery support for S8TS

Automation > Accessories/spare parts for low-voltage switch technology
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number S82Y-TS01 consists of support batteries designed to provide reliable backup power for modular DC uninterruptible power supply setups during unexpected electrical grid interruptions. Battery backup modules maintain critical control voltage levels to prevent data loss and ensure uninterrupted operation of sensitive industrial instruments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: S82Y-TS01
  • Catalogue code: 154754
  • Catalogue title: S82Y-TS01 154754 S82YTS01 OMRON Support batteries for S8TS
  • Product description: S8T-DCBU-01/-02DC Backup S8T-DCBU-01 The S8T-DCBU-01 battery backup block supplies 24 VDC for a fixed period of time dur- ing AC input outages to considerably improve system reliability. • Supplies 24 VDC for a long peri
  • Manufacturer summary: Support batteries for S8TS Battery support for S8TS

More info

▲

S8T-DCBU-01/-02DC Backup
S8T-DCBU-01
The S8T-DCBU-01 battery backup block supplies 24 VDC for a fixed period of time dur- ing AC input outages to considerably improve system reliability.
• Supplies 24 VDC for a long period of time during AC input outages
• For system reliability improvement
• Block power supply basic block is connected by the bus line connector
• Simple system configuration
• Alarms indicated on main unit and via alarm signal output
Ordering information
Product Input voltageOutput voltage Output current Order code
DC back-up block24 to 28 VDC24 V3.7 A/8 A S8T-DCBU-01
Battery holder – – – S82Y-TS01
Product Input voltageOutput voltage Output current Type Order code
Basic block
(use together with the DC
back-up block)
100 to 240 VAC24 V2.5 A Screw terminal type
Connector terminal type
With bus line connectorsS8TS-06024-E1
Without bus line connectors S8TS-06024
With bus line connectorsS8TS-06024F-E1
Without bus line connectors S8TS-06024F
Product Back-up timeOvercurrent protection operating point selector
Order code
Battery 8 min./3.7A 5.7 A (typ.) – LC-R122R2PG
4 min./8.0A 5.7 A (typ.) 11.7A (typ.) LC-R123R4PG
Note:The S8TS DC back-up block is for S8TS power supplies only.
Specifications
ItemSize in mm (HxWxD) S8T-DCBU-01 120x43x130
Battery holder 82x185.7x222.25
S8T-DCBU-02
Prevents equipmentstoppage, data loss and other problems resulting from
momentary power failures. One S8T-DCBU-02 buffer block provides a back-up time of
500 ms at an output current of 2.5 A. Can be wiredto the24 VDC output from any switch mode power supply.
• Connects to all Omron power supplies: S8TS, S8VS, S82J, S82K, S8VM, S8PE
• Connects to both single-phase and three-phase power supplies
• Connects to an S8TS powersupplyvia an S8T-BUS03 buslineconnector
• Parallel connection up to 4 units to increase back-up time and capacity
• Complies with Semi F47-0200 standard
Ordering information
Input voltageOutput voltage (during back-up operation) Output currentOrder code
24 VDC (24 to 28 VDC)22.5 V 2.5 A S8T-DCBU-02
Accessories
TypeNumber of connectorsOrder code
DC bus line connector (for use with S8TS only) 1 connector S8T-BUS03
10 connectors S8T-BUS13
Specifications
ItemSize in mm (H×W×D) S8T-DCBU-02 120×43×120
551


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
