> OMRON > Solid State Relays > G3PW > G3PW1002M

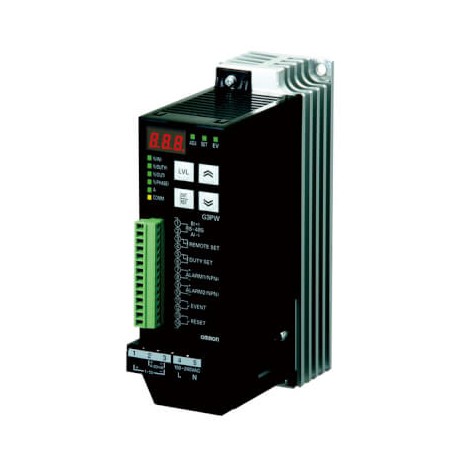

OMRON G3PW-A260EU-C G3PW-A260EU-C G3PW1002M G3PWA260EUC OMRON 60A Phase Control 4-20mA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PW-A260EU-C G3PW1002M G3PWA260EUC OMRON 60A Phase Control 4-20mA

G3PW-A260EU-C

G3PW1002M

G3PWA260EUC

OMRON

1 Pcs.

60A Phase Control 4-20mA Single phase power controller, standard type, 60 A, SLC terminals

Automation > Solid state relay
G3PW

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Precise heater burnout detection
  • Phase control or optimum cycle control
  • RS-485 communications to set manipulated variables and monitor load current
  • Total runtime monitoring
  • Application with various loads: constant load resistance, variable load resistance

Specifications & ordering info

Ordering information

Applicable output load

Type

Contact terminal block

Heater burnout detection

Communications

Order code

100 to 240 VAC

20 A

Standard

Screwless clamp terminal block

No

No

G3PW-A220EU-C

45 A

G3PW-A245EU-C

60 A

G3PW-A260EU-C

20 A

Constant current

Yes

Yes

G3PW-A220EC-C-FLK

45 A

G3PW-A245EC-C-FLK

60 A

G3PW-A260EC-C-FLK

20 A

Standard

Terminal block with small slotted screws

No

No

G3PW-A220EU-S

45 A

G3PW-A245EU-S

60 A

G3PW-A260EU-S

20 A

Constant current

Yes

Yes

G3PW-A220EC-S-FLK

45 A

G3PW-A245EC-S-FLK

60 A

G3PW-A260EC-S-FLK

Accessories (Order separately)

Name

Resistive value

Display

Order code

External Variable Resistor

2 kΩ

202

G32X-V2K

Specifications

Order code

Standard Models

Constant-current Models

G3PW-A2__EU-_

G3PW-A2__EC-__-FLK

Control method

Analog input: Phase control or optimum cycle control

Voltage ON/OFF input: ON/OFF control

Maximum load capacity

Phase control: Linear (resistive) load, transformer primary-side control (flux density: 1.25 T max.)

Optimum cycle control: Linear (resistive) load (Transformer primaryside control is not supported.)

Output mode

Analog input

Phase control

Proportional to phase angle (same as G3PX), proportional to square voltage, proportional to voltage

Proportional to phase angle (same as G3PX), proportional to square voltage, proportional to voltage, constant-current control

Optimum cycle control

Optimum cycle control (Output is switched to 100% or 0% each half cycle.)

Voltage ON/OFF input

ON/OFF control

Proportional to voltage control


ETIM for 260081 Relays (EC002055)
Feature Name Feature Value
Modular version (EF001126) No
Rated operation current Ie at AC-1 (EF006069) 60 A
Number of phases (EF000351) 1
Rated control supply voltage DC (EF003980) 1 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
