View larger
Images are for illustrative purposes only. Please refer to data sheet for details

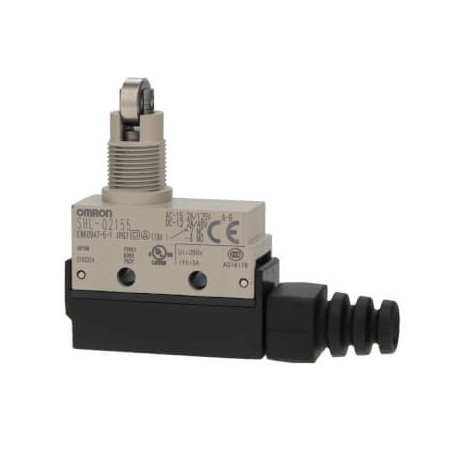

SHL-Q2155-01 SHLN0300C SHLQ215501 OMRON Plunger roller plunger cross Mont pane IP 67 Microcarga
SHL-Q2155-01
SHLN0300C
SHLQ215501
OMRON
1 Pcs.
Plunger roller plunger cross Mont pane IP 67 Microcarga
Enclosed switch, panel mount across roller plunger, SPDT,10A micro voltage
Automation > End switch
SHL
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Material housingZincDegree of protection (IP)IP67Actuator typeCrossroller plungerActuator detailWith M14 mountingConnection methodTerminal blockCable entry directionRightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeMicro loadWith status indication
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Alignment of the control element (EF008793) | Roller cam crossed |
| Type of control element (EF006976) | Roller cam |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Other |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Quick-break switch |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| Switching function latching (EF007447) | No |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | No |
| Forced opening (EF006694) | No |
| Output electronic (EF006987) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.1 A |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 0.1 A |
| Width sensor (EF007094) | 45.6 mm |
| Height of sensor (EF007283) | 59.9 mm |
| Length of sensor (EF007334) | 17.5 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
