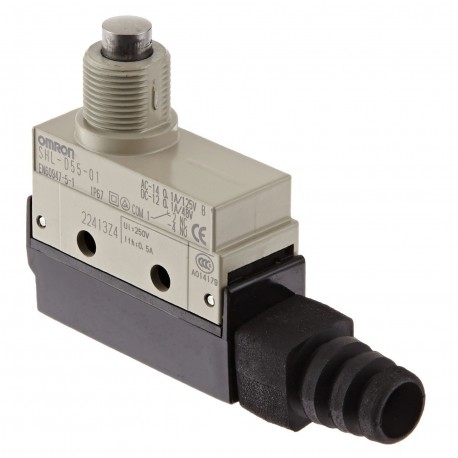

OMRON SHL-D55 SHL-D55 SHLN2100A SHLD55 OMRON Plunger IP67 standard Miniature View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SHL-D55 SHLN2100A SHLD55 OMRON Plunger IP67 standard Miniature

SHL-D55

SHLN2100A

SHLD55

OMRON

10 Pcs.

Plunger IP67 standard Miniature Subminature enclosed switch, plunger actuator

Automation > End switch
SHL

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Deploy the Omron SHL-D55 miniature limit switch in tight control spaces to detect physical objects and coordinate automated movement sequences. Compact limit switches are standard components in industrial automation, used to govern travel limits and monitor equipment positioning safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 2 A
  • Number of contacts as normally closed contact (EF008255): 0
  • Rated operation current Ie at AC-15, 125 V (EF007082): 2 A

More info

▲
Material housingZincDegree of protection (IP)IP67Actuator typePlungerConnection methodTerminal blockCable entry directionRightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
