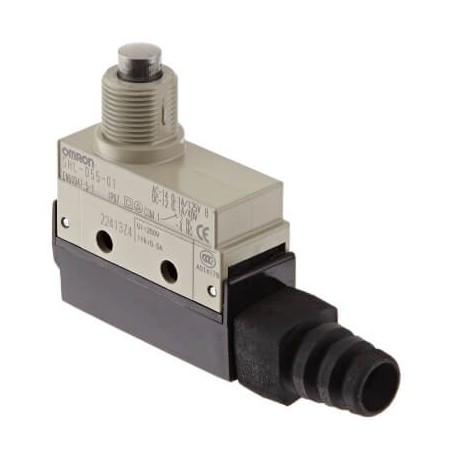

OMRON SHL-D55-01 SHL-D55-01 SHLN0100M SHLD5501 OMRON Plunger IP67 standard Miniature Microcarga View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SHL-D55-01 SHLN0100M SHLD5501 OMRON Plunger IP67 standard Miniature Microcarga

SHL-D55-01

SHLN0100M

SHLD5501

OMRON

10 Pcs.

Plunger IP67 standard Miniature Microcarga Subminature enclosed switch, plunger actuator, 0.1A micro load

Automation > End switch
SHL

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron miniature microswitch is a compact sensing device utilized in electronic and light industrial equipment to detect small movements or precise object placement. It ensures accurate contact state changes within restricted spaces where standard sensors cannot fit. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.1 A
  • Number of contacts as normally closed contact (EF008255): 0
  • Rated operation current Ie at AC-15, 125 V (EF007082): 0.1 A

More info

▲
Material housingZincDegree of protection (IP)IP67Actuator typePlungerConnection methodTerminal blockCable entry directionRightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeMicro loadWith status indication
