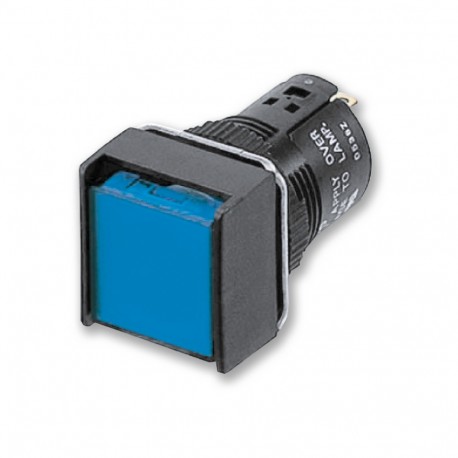

OMRON M16-S M16-S M16 3003M M16S OMRON PUSH-BUTTON/EMERGENCY STOP BUTTON View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M16-S M16 3003M M16S OMRON PUSH-BUTTON/EMERGENCY STOP BUTTON

M16-S

M16 3003M

M16S

OMRON

20 Pcs.

PUSH-BUTTON/EMERGENCY STOP BUTTON EMERGENCY PUSHBUTTON/SETA Screwless terminal socket for use with M16 range of indicators

Automation > Accessories/spare parts for optic and acoustic signalling equipment
Special

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • LED, incandescent and neon lamp
  • Snap-in switch unit
  • Short mounting depth, less than 28.5mm below panel
  • High reliability, IP65
  • UL and CSA approved, conforms to EN60947-5-1

Specifications & ordering info

Ordering information

Pushbutton

Type

Display color

Order code

IP65 oil-resistant

Rectangular

Square

Round

LED

Incandescent lamp

Red

A165L-JR

A165L-AR

A165L-TR

Yellow

A165L-JY

A165L-AY

A165L-TY

Pure yellow

A165L-JPY

A165L-APY

A165L-TPY

White

A165L-JW

A165L-AW

A165L-TW

Blue

A165L-JA

A165L-AA

A165L-TA

LED

Incandescent lamp

Green

A165L-JGY

A165L-AGY

A165L-TGY

Green

A165L-JG

A165L-AG

A165L-TG

Lamp

Type

Color

Order code

Operating voltage

5 VDC

12 VDC

24 VDC

LED

Red

A16-5DSR

A16-12DSR

A16-24DSR

Yellow

A16-5DSY

A16-12DSY

A16-24DSY

Green

A16-5DSG

A16-12DSG

A16-24DSG

White

A16-5DSW

A16-12DSW

A16-24DSW

Blue

A16-5DA

A16-12DA

A16-24DA

Type

5 VAC/VDC

12 VAC/VDC

24 VAC/VDC

Incandescent lamp

A16-5

A16-12

A16-24

Case

Classification

Order code

IP65 oil-resistant

Rectangular

A165-CJM

Square

A165-CAM

Round

A165-CTM

Socket

Classification

Order code

Solder terminals

M16-0

PCB terminals

M16-0P

Screw-less clamp

M16-S

Solder terminals

Voltage-reduction
lighting

100 V

M16-T1

Screw-less clamp

100 V

M16-T1-S

200 V

M16-T2-S

Specifications

Allowable operating frequency

Mechanical

Momentary operation: 120 operations/minute max., alternate operation: 60 operations/minute max.

Electrical

20 operations/minute max.

Durability

Mechanical

Momentary operation: 2,000,000 operations min.,
alternate operation: 200,000 operations min.

Electrical

100,000 operations min.

Degree of contamination

3 (IEC947-5-1)

Ambient temperature

Operating: -10 to 55°C
(with no icing or condensation)
Storage: -25 to 65°C
(with no icing or condensation)

Weight

Approx. 10 g (in the case of a lighted DPDT switch with solder terminals)

Size in mm

Round/square: 18Hx18Wx28.5D
rectangular: 18Hx24Wx28.5D

Agency

Standards

File number

UL, cUL

UL508

E41515

Ratings

Superbright LED

Rated voltage

Rated current

Operating voltage

Built-in limiting resistance

5 VDC

30 mA (15 mA)

5 VDC ±5%

33 Ω (68 Ω)

12 VDC

15 mA

12 VDC ±5%

270 Ω (560 Ω)

24 VDC

10 mA

24 VDC ±5%

1,600 Ω (2,000 Ω)

Incandescent lamp

Rated voltage

Rated current

Operating voltage

6 VAC/VDC

60 mA

5 VAC/VDC

14 VAC/VDC

40 mA

12 VAC/VDC

28 VAC/VDC

24 mA

24 VAC/VDC


Product Datasheet
