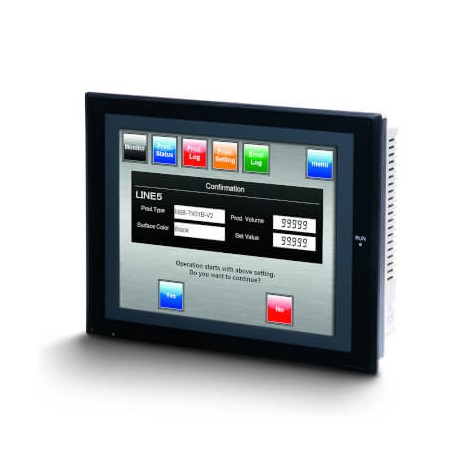

NS series - TFT 8.4" Color Ethernet (Black) NS Series - TFT 8.4" Ethernet Color (Black) Touch screen HMI, 8.4 inch, TFT, 256 colors (32,768 colors for .BMP/.JPG), 640x480 pixels, 2 x RS-232C ports, Ethernet (10/100 Base-T), 60MByte memory, 24 VDC, black case

Automation > Graphic panel
NS8

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as an interface for machine control, the Omron NS8-TV01B-V2 is a TFT display designed to present critical operational data and system alerts in manufacturing environments. Operator terminals connect to controllers to streamline plant floor supervision and parameter adjustments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frame colour: Black
  • Screen diagonal: 8.4 inch
  • Number of pixels, horizontal: 640
  • Number of pixels, vertical: 480
  • Type of display: TFT
  • Number of colours of the display: 32768
  • Number of Ethernet ports: 1
  • Number of RS-232 ports: 2
  • Number of RS-422 ports: 0
  • Number of RS-485 ports: 0
  • Number of USB ports: 1
  • Degree of protection (IP), front side: IP65
  • Width of the front: 232 mm
  • Height of the front: 177 mm
  • Width of panel cutout: 220.5 mm
  • Height of panel cutout: 165.5 mm

More info

▲

Specifications

Frame colourBlack
Screen diagonal8.4 inch
Number of pixels, horizontal640
Number of pixels, vertical480
Type of displayTFT
Number of colours of the display32768
Number of Ethernet ports1
Number of RS-232 ports2
Number of RS-422 ports0
Number of RS-485 ports0
Number of USB ports1
Degree of protection (IP), front sideIP65
Width of the front232 mm
Height of the front177 mm
Width of panel cutout220.5 mm
Height of panel cutout165.5 mm
Built-in depth42 mm
Weight2000 g

Accessories

CJ1W-CIF11RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side
CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
HMC-AP001Memory card adaptor (for memory card to PC PCMCIA port)
HMC-EF183Flash memory card, 128MB
HMC-EF283Flash memory card, 256MB
HMC-EF583Flash memory card, 512MB
NS-AL002RS-232C-RS422/485 adapter (500 m, not isolated) for NS HMI
NS7-KBA04Anti-reflective sheets for NS8 HMI (pack of 5)
NS7-KBA05NProtective covers (transparent) for NS8 HMI, pack of 5
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
XW2Z-500TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 5 m

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
