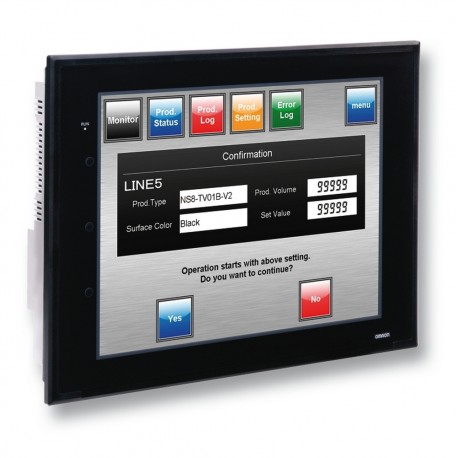

NS series - TFT 15" Colour (Black) Touch screen HMI, 15 inch XGA, TFT, 256 colors, 1024x768 pixels, 1 x RS-232C & 1 x RS422 ports, Ethernet (10/100 Base-T), 60MByte memory, 24 VDC, black case

Automation > Graphic panel
NS15

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number 304977 NS15TX01BV2 OMRON NS series TFT 15" Colour (Black) functions as an advanced human-machine interface designed for industrial control architectures. Operator terminals of this class facilitate real-time visualization, process monitoring, and equipment management on factory floors. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Frame colour: Black
  • Screen diagonal: 15 inch
  • Number of pixels, horizontal: 1024
  • Number of pixels, vertical: 768
  • Type of display: TFT
  • Number of colours of the display: 32768
  • Number of Ethernet ports: 1
  • Number of RS-232 ports: 2
  • Number of RS-422 ports: 1
  • Number of RS-485 ports: 1
  • Number of USB ports: 1
  • Degree of protection (IP), front side: IP65
  • Width of the front: 405 mm
  • Height of the front: 304 mm
  • Width of panel cutout: 383.5 mm
  • Height of panel cutout: 282.5 mm

More info

▲

Specifications

Frame colourBlack
Screen diagonal15 inch
Number of pixels, horizontal1024
Number of pixels, vertical768
Type of displayTFT
Number of colours of the display32768
Number of Ethernet ports1
Number of RS-232 ports2
Number of RS-422 ports1
Number of RS-485 ports1
Number of USB ports1
Degree of protection (IP), front sideIP65
Width of the front405 mm
Height of the front304 mm
Width of panel cutout383.5 mm
Height of panel cutout282.5 mm
Built-in depth67.8 mm
Weight4111 g

Accessories

CJ1W-CIF11RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side
CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
HMC-AP001Memory card adaptor (for memory card to PC PCMCIA port)
HMC-EF183Flash memory card, 128MB
HMC-EF283Flash memory card, 256MB
HMC-EF583Flash memory card, 512MB
NS-AL002RS-232C-RS422/485 adapter (500 m, not isolated) for NS HMI
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
XW2Z-500TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 5 m
