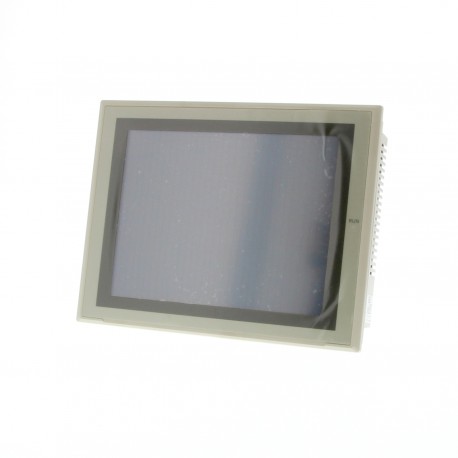

OMRON NS10-TV00-V2 NS10-TV00-V2 NS100009M NS10TV00V2 OMRON NS series TFT 10.4" Color (Beige) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NS10-TV00-V2 NS100009M NS10TV00V2 OMRON NS series TFT 10.4" Color (Beige)

NS10-TV00-V2

NS100009M

NS10TV00V2

OMRON

1 Pcs.

NS series - TFT 10.4" Color (Beige) Touch screen HMI, 10.4 inch, TFT, 256 colors (32,768 colors for .BMP/.JPG), 640x480 pixels, 2 x RS-232C ports, 60MByte memory, 24 VDC, beige case

Automation > Graphic panel
NS10

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron supplied the NS10-TV00-V2 NS100009M NS10TV00V2 OMRON NS series TFT 10.4" Color (Beige) as a specialized operator terminal deployed in factory automation networks. These visualization units facilitate real-time monitoring, alarm management, and user interaction for complex industrial machinery and process control loops.

Please submit an RFQ to receive exact pricing, availability, and lead time information for this part.

  • Frame colour: Beige
  • Screen diagonal: 10.4 inch
  • Number of pixels, horizontal: 640
  • Number of pixels, vertical: 480
  • Type of display: TFT
  • Number of colours of the display: 32768
  • Number of Ethernet ports: 0
  • Number of RS-232 ports: 2
  • Number of RS-422 ports: 0
  • Number of RS-485 ports: 0
  • Number of USB ports: 1
  • Degree of protection (IP), front side: IP65
  • Width of the front: 323 mm
  • Height of the front: 241 mm
  • Width of panel cutout: 302 mm
  • Height of panel cutout: 228 mm

More info

▲

Specifications

Frame colourBeige
Screen diagonal10.4 inch
Number of pixels, horizontal640
Number of pixels, vertical480
Type of displayTFT
Number of colours of the display32768
Number of Ethernet ports0
Number of RS-232 ports2
Number of RS-422 ports0
Number of RS-485 ports0
Number of USB ports1
Degree of protection (IP), front sideIP65
Width of the front323 mm
Height of the front241 mm
Width of panel cutout302 mm
Height of panel cutout228 mm
Built-in depth42 mm
Weight2300 g

Accessories

CJ1W-CIF11RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side
CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
HMC-AP001Memory card adaptor (for memory card to PC PCMCIA port)
HMC-EF183Flash memory card, 128MB
HMC-EF283Flash memory card, 256MB
HMC-EF583Flash memory card, 512MB
NS-AL002RS-232C-RS422/485 adapter (500 m, not isolated) for NS HMI
NS12-KBA04Anti-reflective sheets for NS10/12 HMI, pack of 5
NS12-KBA05NProtective covers (transparent) for NS10/12 HMI, pack of 5
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
XW2Z-500TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 5 m

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
