OMRON F3SP-U5P-TGR F3SP-U5P-TGR 153354 OMRON Driver Muting 4 Photocells DIN 45mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

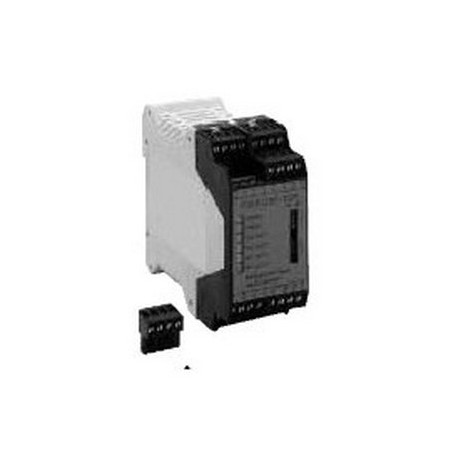

F3SP-U5P-TGR 153354 OMRON Driver Muting 4 Photocells DIN 45mm

F3SP-U5P-TGR

153354

OMRON

1 Pcs.

Driver Muting 4 Photocells DIN 45mm Muting Controller 4 DIN 45mm Photocells

Automation > Device for monitoring of safety-related circuits
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

E3FSSafety sensors
Single-beam safety sensor in compact housing
The slender M18-sized E3FS is a type 2 safety single beam with an operating range of up to 10 m. Plastic and metal housing, cable and M12-connector offer flexibility in
application together with a control unit such as F3SP-U3P or F3SP-U5P.
• Sensing distance up to 10 m
•LEDs for easy alignment and diagnosis
• Cable and M12 plug categories
• Plastic and metal housing
• Type 2 sensor complying with EN 61496-1
Ordering information
Safety single beam sensors (Type 2)Controller for safety single beam sensors
Case material Operation distanceOrder code
Sensors Output contactsWidthOrder code
Plastic 0 to 10 mCable type E3FS-10B4
Plug type E3FS-10B4-P1
Nickel brassCable typeE3FS-10B4-M Plug type E3FS-10B4-M1-M
1 to 2
Safety single beam sensors
1 to 4
Safety single beam sensors
2 NO 2.5 A22.5 mm F3SP-U3P-TGR
45 mmF3SP-U5P-TGR
Specifications
Sensors
Sensing method Through-beam
ControllerF3SP-U3P-TGR, F3SP-U5P-TGR Supply voltage (Vs) 24 VDC ± 10% (ripple p-p 10% max.) Effective aperture angle (EAA) ±5° (at 3 m)
Current consumption Emitter:50 mA max.
Receiver:25 mA max.
Sensing distance10 m
Standard sensing objectOpaque object: 11 mm min. in diameter
Response time 2.0 ms (E3FS only)
Control outputPNP transistor output, load current: 100 mA max.
Test input (emitter)21.5 to 24 VDC: Emitter OFF (source current: 3 mA max.)
Open or 0 to 2.5V: Emitter ON (leakage current: 0.1 mA max.)
Ambient light intensityIncandescent lamp: 3.000 lx max. (light intensity on the receiver surface) Sunlight: 10,000 lx max. (light intensity on the receiver surface)
Ambient temperature Operating:-20°C +55°C, storage:-30°C +70°C (with no icing or condensation)
Degree of protectionIP67(IEC 60529)
Light source Infrared LED
ProtectionOutput short-circuit protection, reverse polarity protection
Controllers
Item F3SP-U3PF3SP-U5P
Number of sensors 1 to 2 safety single beam sensor 1 to 4 safety single beam sensor
Width 22.5 mm45 mm Muting input2 Inputs4 Inputs Safety related functionOverride function
Muting lamp connection
Interlock system (automatic and manual reset)
Power supply voltage24 VDC ±10%
Power consumption 420 mA max.
Output contacts 2 NO 2.5 A (protected by fuse), 115 VAC max. 2 NO 2.5 A (protected by fuse), 250 VAC max.
Indicators 6 LED for status and diagnostics
Degree of protectionIP20(IEC 60529)
Terminal16 screw terminals, detachable blocks with ’4pin’
Response time  30 ms
Ambient temperature Operation: –10°C +55°C
Housing material PlasticDIN rail mounting
32 screw terminals, detachable blocks with ’4pin’
488
