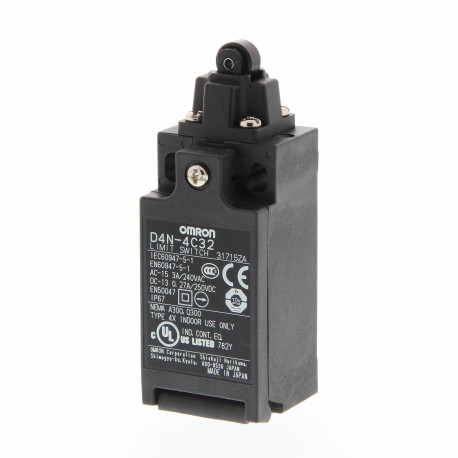

OMRON D4N-4C32 D4N-4C32 D4N 0299B D4N4C32 OMRON Plastic 2NC/1NO Plunger roller plunger M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4C32 D4N 0299B D4N4C32 OMRON Plastic 2NC/1NO Plunger roller plunger M20

D4N-4C32

D4N 0299B

D4N4C32

OMRON

1 Pcs.

Plastic 2NC/1NO Plunger roller plunger M20 Safety Limit switch, D4N, M20 (1 conduit), 2NC/1NO (slow-action), top roller plunger

Automation > End switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A plastic roller plunger limit switch manufactured by Omron serves as a critical feedback element in industrial machinery, translating physical motion into electrical switching commands. These components are typically installed on protective doors and moving carriages to verify precise physical states and maintain process control. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeRoller plungerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed2Make before breakSwitch actionSlow action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
