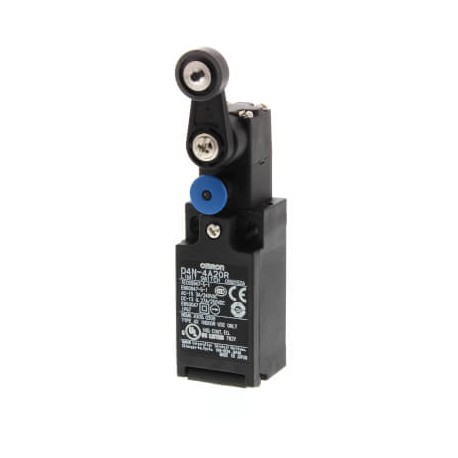

OMRON D4N-4A20R D4N-4A20R D4NR0004D D4N4A20R OMRON Manual reset 1NC/1NO Roller plunger M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4A20R D4NR0004D D4N4A20R OMRON Manual reset 1NC/1NO Roller plunger M20

D4N-4A20R

D4NR0004D

D4N4A20R

OMRON

1 Pcs.

Manual reset 1NC/1NO Roller plunger M20 Safety Limit switch, D4N, M20 (1 conduit), 1NC/1NO (slow-action), roller lever (resin lever, resin roller), manual reset feature

Automation > End switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A manual reset position switch (D4N-4A20R by Omron) is an electromechanical sensing component deployed in automated installations to monitor component movement and trigger safety interlocks. These units interrupt or establish control circuits when mechanical thresholds are reached. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller lever
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeRoller leverActuator detailResin lever, Resin rollerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomMake before breakSwitch actionSlow actionFeaturesManual resetNumber of contacts, normally-closed1Number of contacts, normally-open1
