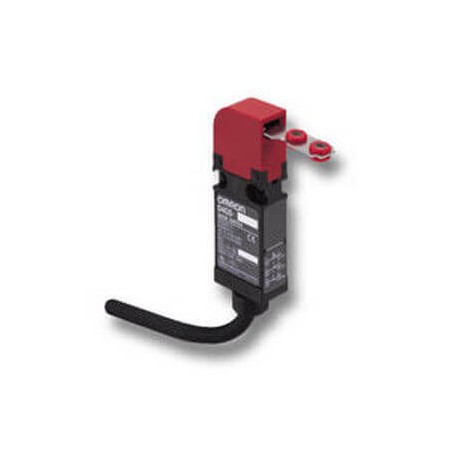

OMRON D4GS-N3R D4GS-N3R D4GS0033C D4GSN3R OMRON Input side pin 1NO+2NC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4GS-N3R D4GS0033C D4GSN3R OMRON Input side pin 1NO+2NC

D4GS-N3R

D4GS0033C

D4GSN3R

OMRON

1 Pcs.

Input side pin 1NO+2NC Safety door switch, IP67, 2NC/1NO (slow-action), horizontal key insertion, 1 m cable

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Safety interlock switches like the Omron D4GS-N3R are utilized in automation setups to monitor access doors and protective covers, preventing machinery from running while enclosures remain open. They provide dependable electrical contact configurations to reinforce functional safety in automated production cells.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): With cable preassembled
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.75 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 30 mm
  • Height of sensor (EF007283): 17 mm
  • Length of sensor (EF007334): 85 mm

More info

▲
Door switch typeKey-operatedGuard-lockAmbient temperature (operating)-30-70 °CDirection of operationHorizontalDoor contacts NC2Door contacts NO1LED indicatorConnection methodCableCable length1 mDegree of protection (IP)IP67Conduit sizeNot ApplicableNumber of conduits0Switch actionSlow actionShapeCuboidOverall length of sensor85 mmHeight of sensor17 mmWidth of sensor30 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
