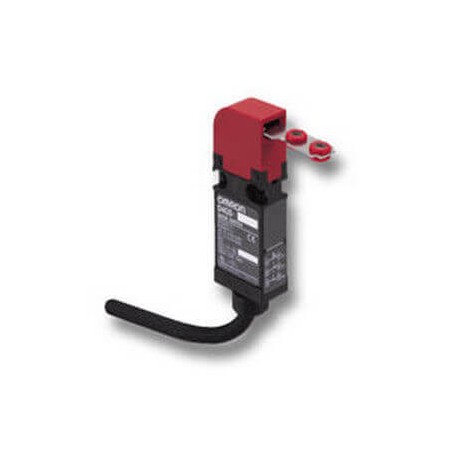

OMRON D4GS-N2R-3 D4GS-N2R-3 D4GS0029E D4GSN2R3 OMRON Input side pin 2NC 3m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4GS-N2R-3 D4GS0029E D4GSN2R3 OMRON Input side pin 2NC 3m

D4GS-N2R-3

D4GS0029E

D4GSN2R3

OMRON

1 Pcs.

Input side pin 2NC 3m Safety door switch, IP67, 2NC (slow-action), horizontal key insertion, 3 m cable

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4GS-N2R-3 D4GS0029E D4GSN2R3 OMRON Input side pin 2NC 3m is a safety interlock switch designed to monitor machine guards, access doors, and protective covers in automated production lines. It ensures industrial machinery ceases operation whenever a safety perimeter is breached.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): With cable preassembled
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.75 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 30 mm
  • Height of sensor (EF007283): 17 mm
  • Length of sensor (EF007334): 85 mm

More info

▲
Door switch typeKey-operatedGuard-lockAmbient temperature (operating)-30-70 °CDirection of operationHorizontalDoor contacts NC2Door contacts NO0LED indicatorConnection methodCableCable length3 mDegree of protection (IP)IP67Conduit sizeNot ApplicableNumber of conduits0Switch actionSlow actionShapeCuboidOverall length of sensor85 mmHeight of sensor17 mmWidth of sensor30 mm
