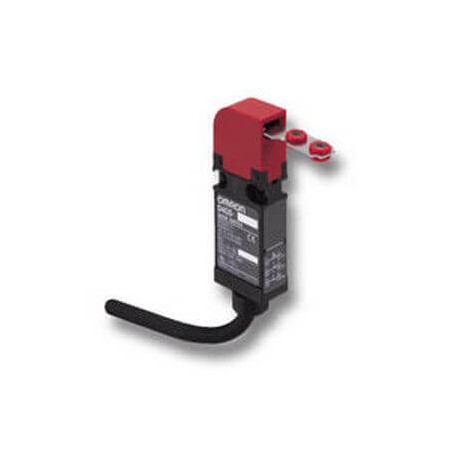

OMRON D4GS-N1R-3 D4GS-N1R-3 D4GS0021M D4GSN1R3 OMRON Input side pin 1NO+1NC 3m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4GS-N1R-3 D4GS0021M D4GSN1R3 OMRON Input side pin 1NO+1NC 3m

D4GS-N1R-3

D4GS0021M

D4GSN1R3

OMRON

1 Pcs.

Input side pin 1NO+1NC 3m Safety door switch, IP67, 1NC/1NO (slow-action), horizontal key insertion, 3 m cable

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a safety switch, the Omron D4GS-N1R-3 is designed to monitor the physical position of hinged or sliding safety guards on industrial machinery. Such components are fundamental in plant automation architectures, providing dependable electrical feedback to safety relays to prevent machine operation while protective barriers remain open.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): With cable preassembled
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.75 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A
  • Number of contacts as normally closed contact (EF008255): 1
  • Width sensor (EF007094): 30 mm
  • Height of sensor (EF007283): 17 mm
  • Length of sensor (EF007334): 85 mm

More info

▲
Door switch typeKey-operatedGuard-lockAmbient temperature (operating)-30-70 °CDirection of operationHorizontalDoor contacts NC1Door contacts NO1LED indicatorConnection methodCableCable length3 mDegree of protection (IP)IP67Conduit sizeNot ApplicableNumber of conduits0Switch actionSlow actionShapeCuboidOverall length of sensor85 mmHeight of sensor17 mmWidth of sensor30 mm
