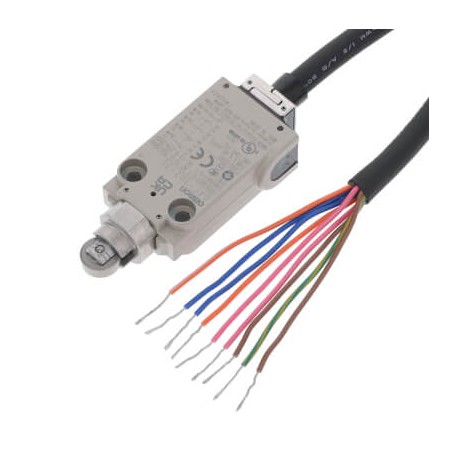

OMRON D4F-102-3D D4F-102-3D D4F 0029B D4F1023D OMRON Metal IP67 1NC/1NO Plunger Roller plunger 3m vert. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4F-102-3D D4F 0029B D4F1023D OMRON Metal IP67 1NC/1NO Plunger Roller plunger 3m vert.

D4F-102-3D

D4F 0029B

D4F1023D

OMRON

1 Pcs.

Metal IP67 1NC/1NO Plunger Roller plunger 3m vert. Small Safety Limit Switch, 1NC/1NO slow-action, roller plunger, 3 m cable, vertical cable exit

Automation > End switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A metal position switch, the Omron D4F-102-3D detects mechanical movement and limits travel in automated machinery and safety circuits. These electromechanical components are standard across production lines for tracking the position of moving components and halting operations when safety thresholds are reached.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): With cable preassembled
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.75 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingMetalActuator typeRoller plungerActuator detailMetal rollerConnection methodCableCable length3 mCable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSlow action
