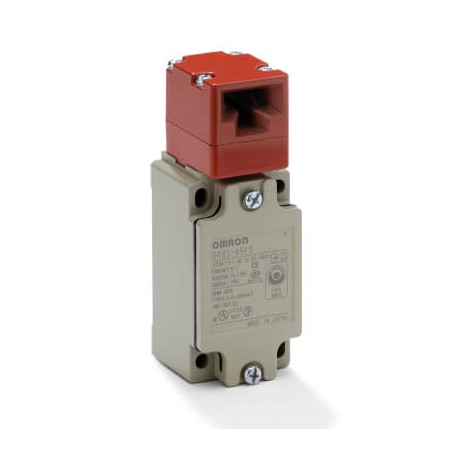

OMRON D4BS-4AFS D4BS-4AFS D4BS4001R D4BS4AFS OMRON Metal 2NC M20 24vdc View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4BS-4AFS D4BS4001R D4BS4AFS OMRON Metal 2NC M20 24vdc

D4BS-4AFS

D4BS4001R

D4BS4AFS

OMRON

1 Pcs.

Metal 2NC M20 24vdc Safety-door switch, Metal, Tongue operated, M20 (1 conduit), 2NC (slow-action)

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A safety limit switch is utilized on heavy industrial machinery to detect the physical limit or movement of moving parts and gates, ensuring equipment halts before reaching unsafe positions. This Omron D4BS-4AFS device brings dependable switching capability to demanding protection loops. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 2 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 40 mm
  • Height of sensor (EF007283): 43 mm
  • Length of sensor (EF007334): 111.5 mm

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingMetalMaterial headMetalAmbient temperature (operating)-40-80 °CDirection of operationAdjustableDoor contacts NC2Door contacts NO0LED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1Switch actionSlow actionShapeCuboidOverall length of sensor111.5 mmHeight of sensor43 mmWidth of sensor40 mm
