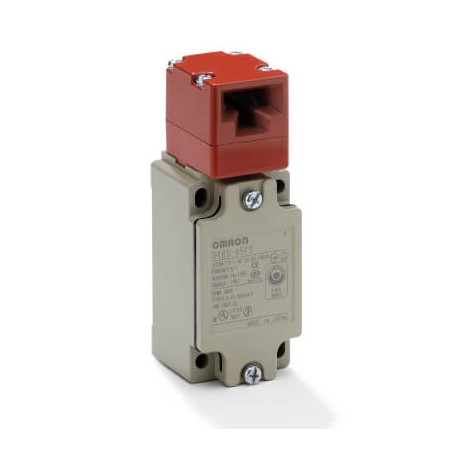

OMRON D4BS-1AFS D4BS-1AFS D4BS0028R D4BS1AFS OMRON Metal 2NC PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4BS-1AFS D4BS0028R D4BS1AFS OMRON Metal 2NC PG13,5

D4BS-1AFS

D4BS0028R

D4BS1AFS

OMRON

2 Pcs.

Metal 2NC PG13,5 Safety-door switch, Metal, Tongue operated, PG13.5 (1 conduit), 2NC (slow-action)

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Encased in a robust metal body, the Omron D4BS-1AFS is a heavy-duty safety position switch. Heavy-duty limit switches are deployed across harsh industrial settings to monitor moving machine parts and interlocking access doors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry PG
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 2 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 40 mm
  • Height of sensor (EF007283): 43 mm
  • Length of sensor (EF007334): 111.5 mm

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingMetalMaterial headMetalAmbient temperature (operating)-40-80 °CDirection of operationAdjustableDoor contacts NC2Door contacts NO0LED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizePG13.5Number of conduits1Switch actionSlow actionShapeCuboidOverall length of sensor111.5 mmHeight of sensor43 mmWidth of sensor40 mm
