View larger
Images are for illustrative purposes only. Please refer to data sheet for details

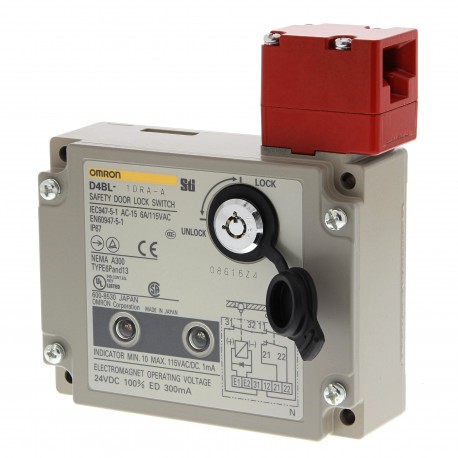

D4BL-4CRA-A D4BL4001C D4BL4CRAA OMRON Metal 1NC/1NO+1NC LED 24vdc M20
D4BL-4CRA-A
D4BL4001C
D4BL4CRAA
OMRON
1 Pcs.
Metal 1NC/1NO+1NC LED 24vdc M20
Metallic 1NC/1NA+1NC LED 24Vcc M20
Safety door-lock switch, M20 conduit, mechanical lock, 24 VDC solenoid release, 1NC/1NO+1NC, 10 A, LED
Automation > Position switch with guard locking
Others
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Type of switching contact (EF003591) | Slow-action switch |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Cable entry metrical |
| Type of interface (EF006977) | None |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| With escape release (EF007172) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Guard locking force (EF007552) | 700 N |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0 A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0 A |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 6 A |
| Width sensor (EF007094) | 112 mm |
| Height of sensor (EF007283) | 46.3 mm |
| Length of sensor (EF007334) | 123.5 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
| Rated control supply voltage magnet drive DC (EF007070) | 20.4 V |
