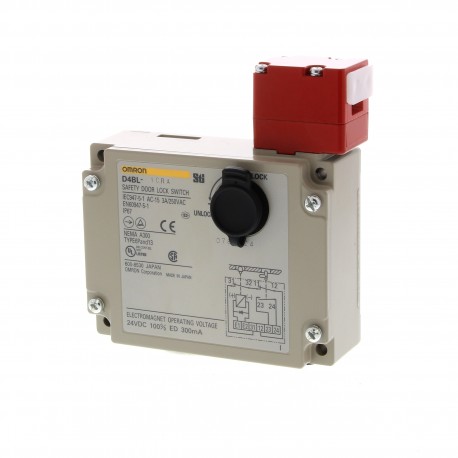

OMRON D4BL-2DRA D4BL-2DRA D4BL1019M D4BL2DRA OMRON Metal 2NC+1NC 24vdc G1/2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4BL-2DRA D4BL1019M D4BL2DRA OMRON Metal 2NC+1NC 24vdc G1/2

D4BL-2DRA

D4BL1019M

D4BL2DRA

OMRON

1 Pcs.

Metal 2NC+1NC 24vdc G1/2 Safety door-lock switch, G1/2 conduit mechanical lock, 24 VDC solenoid release, 2NC/1NO+1NC, 10 A

Automation > Position switch with guard locking
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron D4BL-2DRA is a metal-housed safety door switch designed for interlocking hazardous machinery enclosures and preventing operator entry until running cycles complete. Such electromechanical safety switches are implemented in harsh industrial settings to safeguard automated work cells and verify closed guard statuses. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Housing material (EF001596): Metal
  • Type of guard locking (EF012608): Quiescent current principle
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Guard locking force (EF007552): 700 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
