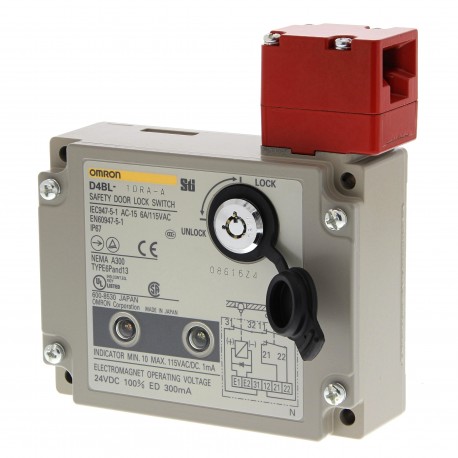

OMRON D4BL-1CRG-A D4BL-1CRG-A D4BL0021F D4BL1CRGA OMRON Metal 1NC/1NO+1NC 24vdc Bloqeo solenoid PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4BL-1CRG-A D4BL0021F D4BL1CRGA OMRON Metal 1NC/1NO+1NC 24vdc Bloqeo solenoid PG13,5

D4BL-1CRG-A

D4BL0021F

D4BL1CRGA

OMRON

1 Pcs.

Metal 1NC/1NO+1NC 24vdc Bloqeo solenoid PG13,5 Safety door-lock switch, PG13.5, 24 VDC solenoid lock, mechanical release, 1NC/1NO (slow-action), 1NC (slow-action), LED

Automation > Position switch with guard locking
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to provide robust interlocking on safety gates and heavy machinery barriers, the D4BL-1CRG-A Omron metal 1NC/1NO+1NC 24vdc bloqeo solenoid PG13,5 secures industrial perimeters. Solenoid locking switches prevent unauthorized access while equipment remains operational or hazardous.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry PG
  • Housing material (EF001596): Metal
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Guard locking force (EF007552): 700 N
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Rated operation current Ie at AC-15, 125 V (EF007082): 6 A

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
