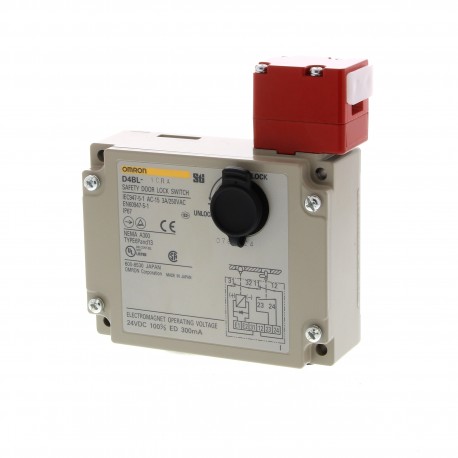

OMRON D4BL-1CRA D4BL-1CRA D4BL1001G D4BL1CRA OMRON Metal 1NC/1NO+1NC 24vdc PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4BL-1CRA D4BL1001G D4BL1CRA OMRON Metal 1NC/1NO+1NC 24vdc PG13,5

D4BL-1CRA

D4BL1001G

D4BL1CRA

OMRON

1 Pcs.

Metal 1NC/1NO+1NC 24vdc PG13,5 Safety door-lock switch, PG13.5 conduit, mechanical lock, 24 VDC solenoid release, 1NC/1NO+1NC, 10 A

Automation > Position switch with guard locking
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron metal safety switch with locking mechanism is mounted on machine access enclosures to safeguard operators from moving hazards. These electromechanical interlocks lock safety gates shut during dangerous operational phases.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry PG
  • Housing material (EF001596): Metal
  • Type of guard locking (EF012608): Quiescent current principle
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Guard locking force (EF007552): 700 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
