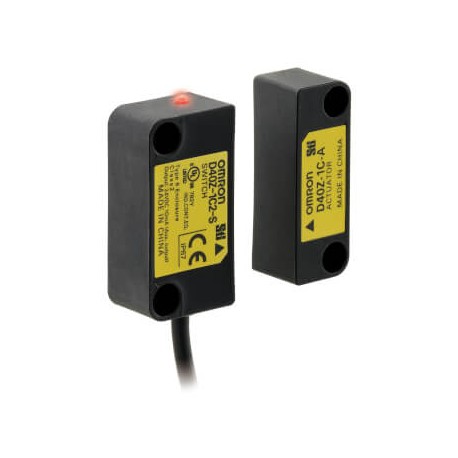

OMRON D40Z-1C2 D40Z-1C2 D40Z0001A D40Z1C2 OMRON Magnetic Plast. Codif. LED Cat4/Ple Salt Aux Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D40Z-1C2 D40Z0001A D40Z1C2 OMRON Magnetic Plast. Codif. LED Cat4/Ple Salt Aux Cable 2m

D40Z-1C2

D40Z0001A

D40Z1C2

OMRON

1 Pcs.

Magnetic Plast. Codif. LED Cat4/Ple Salt Aux Cable 2m Non-contact door switch, compact sensor, LED indicator, 1NO aux, requires G9SX-NS or G9SP controller for Category 4/PLe, 2 m

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The D40Z-1C2 D40Z0001A D40Z1C2 OMRON Magnetic Plast. Codif. LED Cat4/Ple Salt Aux Cable 2m functions as a coded magnetic safety switch designed to monitor protective machine covers and access doors. By utilizing coded magnetic actuation, it prevents unauthorized bypass and ensures safe machine stoppage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Housing material (EF001596): Plastic
  • Construction type housing (EF004008): Cuboid
  • Coating housing (EF001601): Uncoated
  • Type of electric connection (EF003961): With cable preassembled
  • With status indication (EF001602): Yes
  • Forced opening (EF006694): No
  • Suitable for safety functions (EF001597): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Height of sensor (EF007283): 48 mm
  • Number of contacts as normally open contact (EF008256): 1
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Width sensor (EF007094): 25 mm
  • Length of sensor (EF007334): 16 mm
  • Ambient temperature during operating (EF007515): -10 °C

More info

▲
Switch without actuatorMin. operating distance OFF to ON5 mmMax. operating distance ON to OFF15 mmMax. differential travel20 %Ambient temperature (operating)-10-65 °CVibration resistance10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm)Min. shock resistance300 m/s²Degree of protection (IP)IP67Material housingPBTMounting methodM4 screwsMax. power consumption0.5 WAuxiliary monitoring outputPhotocoupler output: 24 V DC, load current: 10 mACable length2 mNumber of connectable switches30 max. (wiring length: 100 m max.)LED indicator
