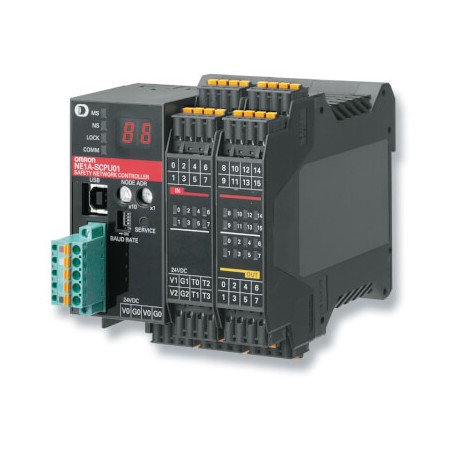

Network driver Dnet security 40E-8S-8T V2 Safety network controller, 40 x PNP inputs, 8x PNP outputs, 8x test outputs

Automation > Device for monitoring of safety-related circuits
DeviceNet Security

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron NE1A-SCPU02 VER2,0 network driver Dnet security 40E-8S-8T V2 functions as a programmable safety controller managing networked safety architectures over industrial fieldbuses. This controller coordinates distributed safety inputs and outputs across a manufacturing plant to ensure reliable machine interlocking and rapid fault reaction. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Ethernet/IP and DeviceNet safety: NE1A-SCPU01-EIP
  • Ethernet/IP and DeviceNet safety: NE1A-SCPU02-EIP
  • Safety network configurator: Installation disk (CD-ROM) IBM PC/AT compatible Windows 2000, Windows XP, Windows 7
  • Network router: Ethernet/IP - DeviceNet router
  • Unit power supply voltage: 20.4 to 26.4 VDC (24 VDC -15% +10%)
  • I/O power supply voltage Consumption current: Communications power supply
  • Internal circuit power supply: 24 VDC, 230 mA
  • Mounting method: 35-mm DIN track
  • Ambient operating temperature: -10 to 55°C
  • Ambient storage temperature: -40 to 70°C
  • Degree of protection: IP20 (IEC 60529)
  • ON voltage: 11 VDC min. between each input terminal and G1
  • OFF voltage: 5 VDC max. between each input terminal and G1
  • OFF current: 1 mA max.
  • Input current: 4.5 mA
  • Rated output current: 0.5 A max. per output

More info

▲
Features

Safety network controller NE1A

The NE1A hosts the safety application program. All local and DeviceNet safety-based in- and outputs are monitored and controlled by the NE1A. It manages up to 16 DeviceNet safety slaves and can be seamlessly integrated in a standard DeviceNet system.

  • Removable cage-clamp terminals for easy installation
  • Predefined and certified function blocks for easy programming
  • LED display and status LEDs for advanced diagnostics
  • System status on DeviceNet for easy troubleshooting and predictive maintenance
  • Easy scalability through the addition of DeviceNet safety devices

Ordering information

Appearance

Appearance description

Interface

Order code

Safety network
controller

16 PNP inputs

8 PNP outputs

4 test outputs

254 function block programming

removable cage clamp terminals

USB and
DeviceNet safety

NE1A-SCPU01-V1

Ethernet/IP and
DeviceNet safety

NE1A-SCPU01-EIP

40 PNP inputs

8 PNP outputs

8 test outputs

254 function block programming

removable cage clamp terminals

USB and

DeviceNet safety

NE1A-SCPU02

Ethernet/IP and

DeviceNet safety

NE1A-SCPU02-EIP

Software

Appearance

Appearance description

Order code

Safety network
configurator

Installation disk (CD-ROM)

IBM PC/AT compatible

Windows 2000, Windows XP, Windows 7

WS02-CFSC1-E

Accessories

Appearance

Appearance description

Order code

Network router

Ethernet/IP - DeviceNet router

NE1A-EDR01

Programming console

CF-Card slot to store configuration

USB-Interface for maintenance

Touchscreen for easy troubleshooting

NE1A-HDY

Specifications

General specifications

DeviceNet communications power supply voltage

11 to 25 VDC
(supplied from communications connector)

Unit power supply voltage

20.4 to 26.4 VDC
(24 VDC -15% +10%)

I/O power supply voltage

Consumption
current

Communications power supply

24 VDC, 15 mA

Internal circuit power supply

24 VDC, 230 mA

Mounting method

35-mm DIN track

Ambient operating temperature

-10 to 55°C

Ambient storage temperature

-40 to 70°C

Degree of protection

IP20 (IEC 60529)

Safety input specifications

Input type

Sinking inputs (PNP)

ON voltage

11 VDC min. between each input terminal and G1

OFF voltage

5 VDC max. between each input terminal and G1

OFF current

1 mA max.

Input current

4.5 mA

Safety output specifications

Output type

Sourcing outputs (PNP)

Rated output current

0.5 A max. per output

Residual voltage

1.2 V max. between each output terminal and V2

Test output specifications

Output type

Sourcing outputs (PNP)

Rated output current

0.7 A max. per output (see note.)

Residual voltage

1.2 V max. between each output terminal and V1


Product Datasheet
