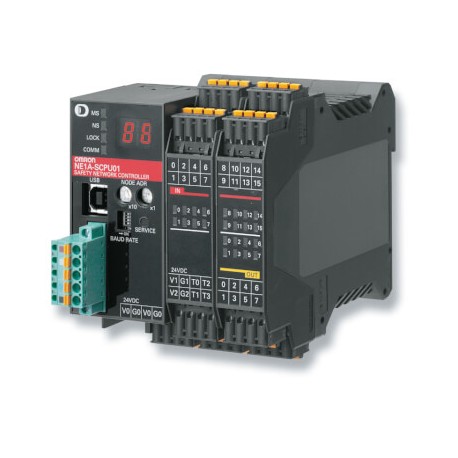

NE1A-SCPU01-V1 VER2,0 NE1A0004R NE1ASCPU01V1VER20 OMRON Network driver DNet security 16E-8S-4T V1
NE1A-SCPU01-V1 VER2,0
NE1A0004R
NE1ASCPU01V1VER20
OMRON
1 Pcs.
Automation > Device for monitoring of safety-related circuits
DeviceNet Security
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
NE1A-SCPU01-V1 VER2,0 NE1A0004R NE1ASCPU01V1VER20 OMRON Network driver DNet security 16E-8S-4T V1 serves as a network controller designed to manage distributed safety architectures over DeviceNet and Ethernet/IP protocols. It oversees safety inputs and outputs across automated production cells, ensuring coordinated emergency stoppages and interlock monitoring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Ethernet/IP and DeviceNet safety: NE1A-SCPU01-EIP
- Ethernet/IP and DeviceNet safety: NE1A-SCPU02-EIP
- Safety network configurator: Installation disk (CD-ROM) IBM PC/AT compatible Windows 2000, Windows XP, Windows 7
- Network router: Ethernet/IP - DeviceNet router
- Unit power supply voltage: 20.4 to 26.4 VDC (24 VDC -15% +10%)
- I/O power supply voltage Consumption current: Communications power supply
- Internal circuit power supply: 24 VDC, 230 mA
- Mounting method: 35-mm DIN track
- Ambient operating temperature: -10 to 55°C
- Ambient storage temperature: -40 to 70°C
- Degree of protection: IP20 (IEC 60529)
- ON voltage: 11 VDC min. between each input terminal and G1
- OFF voltage: 5 VDC max. between each input terminal and G1
- OFF current: 1 mA max.
- Input current: 4.5 mA
- Rated output current: 0.5 A max. per output
More info
▲Safety network controller NE1A
The NE1A hosts the safety application program. All local and DeviceNet safety-based in- and outputs are monitored and controlled by the NE1A. It manages up to 16 DeviceNet safety slaves and can be seamlessly integrated in a standard DeviceNet system.
- Removable cage-clamp terminals for easy installation
- Predefined and certified function blocks for easy programming
- LED display and status LEDs for advanced diagnostics
- System status on DeviceNet for easy troubleshooting and predictive maintenance
- Easy scalability through the addition of DeviceNet safety devices
