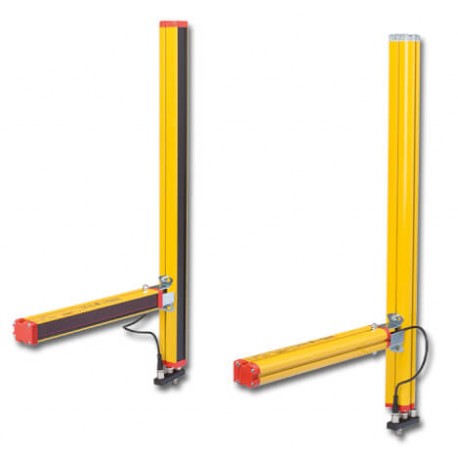

F39-TGR-MCL-CML 337395 F39TGRMCLCML OMRON Connection box muting F3S-TGR-CL Transmitter act/act
F39-TGR-MCL-CML
337395
F39TGRMCLCML
OMRON
1 Pcs.
Automation > Accessories/spare parts for sensor technology
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A safety muting connection box simplifies the electrical integration of muting sensors and transmitters used alongside industrial light curtains to temporarily suspend safety functions when material passes through. This Omron F39-TGR-MCL-CML accessory ensures reliable plug-and-play wiring for automated pallet handling and conveyor systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Omron
- Manufacturer part number: F39-TGR-MCL-CML
- Catalogue code: 337395
- Catalogue title: F39-TGR-MCL-CML 337395 F39TGRMCLCML OMRON Connection box muting F3S-TGR-CL Transmitter act/act
- Product description: F39-TGR-MCL Safety sensors Muting actuators The F39-TGR-MCL-_ muting actuators are plug-and-play accessories for the F3S-TGR-CL Safety Sensors. Easy wiring of the entire muting system is provided by connection boxes mana
- Manufacturer summary: Connection box muting F3S-TGR-CL Transmitter act/act Box connections muting F3S-TGR-CL Act/act emitter
More info
▲F39-TGR-MCL Safety sensors
Muting actuators
The F39-TGR-MCL-_ muting actuators are plug-and-play accessories for the
F3S-TGR-CL Safety Sensors. Easy wiring of the entire muting system is provided by connection boxes managing all connections needed.
• Active/active and active/passive systems supported
• T- and L- shapemutingby using sameparts
• Selectable muting sensor sequence
• Pre-installed mounting brackets
• Pre-wired connection cables
• SupportingType 2 and Type 4 applications
Ordering information
Muting actuators (mounting brackets are included)
Order code
Transmitter + Receiver set active/activeF39-TGR-MCL Receiver onlyactive/activeF39-TGR-MCL-D Transmitter only active/activeF39-TGR-MCL-L Transceiver + Reflector setactive/passiveF39-TGR-MCL-R Transceiver only active/passiveF39-TGR-MCL-R-A Reflector only active/passiveF39-TGR-MCL-R-P
Connection boxes
Order code
Connection box for Receivers and Transceivers F39-TGR-MCL-CMD Connection box for Transmitters F39-TGR-MCL-CML
Mounting brackets
Order code
Mounting bracket for one muting actuator F39-TGR-MCL-ST
Specifications
Power supply 24 VDC±20%
Consumption 5 W max (F39-TGR-MCL-_ only)
Ambient temperature During operation -10 to + 55°C (with no dew condensation)
Cable connectorLength 30 cm pre-wired RX M12 5-pin female TX M12 5-pin female
Degree of protectionIP65
Distance between muting beams250mm
F39-TGR-MCLOptical data Through-beam system
Operating distance0 … 7 m max. 0 … 8,4 m
Light source Red emitting LEDs, Wavelength 630 nm
F39-TGR-MCL-ROptical data Polarized retro-reflective system
Operating distance0 … 4 m max. 0 … 4,8 m
Light source Red emitting LEDs, Wavelength 660 nm
Configuration examples
L-muting, active/active
1) Safety sensor (e.g. F3S-TGR-CL4A-K2-500)
2) Muting actuators F39-TGR-MCL
3) Connector box F39-TGR-MCL-CML
4) Connector box F39-TGR-MCL-CMD
1
L-muting, active/passive
1) Safety Sensor (e.g. F3S-TGR-CL4A-K2C-500)
2) Muting actuators F39-TGR-MCL-R
3) Connection box F39-TGR-MCL-CMD
1
3
2 4 2 3
