F39-TGR-MCL-CMD

337396

F39TGRMCLCMD

OMRON

1 Pcs.

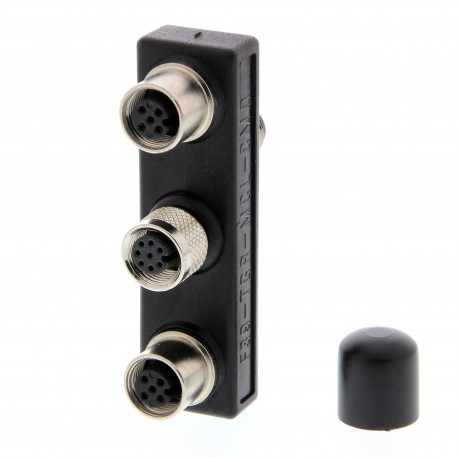

Connection box muting F3S-TGR-CL receiver act/act, act/pas

Automation > Accessories/spare parts for sensor technology
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron F39-TGR-MCL-CMD is a connection box muting accessory designed for seamless integration with F3S-TGR-CL safety sensors. In industrial safety setups, muting hardware temporarily and safely suspends light curtain protective functions during authorized material passage to keep production lines moving without manual intervention. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: F39-TGR-MCL-CMD
  • Catalogue code: 337396

More info

▲

F39-TGR-MCL Safety sensors
Muting actuators
The F39-TGR-MCL-_ muting actuators are plug-and-play accessories for the
F3S-TGR-CL Safety Sensors. Easy wiring of the entire muting system is provided by connection boxes managing all connections needed.
• Active/active and active/passive systems supported
• T- and L- shapemutingby using sameparts
• Selectable muting sensor sequence
• Pre-installed mounting brackets
• Pre-wired connection cables
• SupportingType 2 and Type 4 applications
Ordering information
Muting actuators (mounting brackets are included)
Order code
Transmitter + Receiver set active/activeF39-TGR-MCL Receiver onlyactive/activeF39-TGR-MCL-D Transmitter only active/activeF39-TGR-MCL-L Transceiver + Reflector setactive/passiveF39-TGR-MCL-R Transceiver only active/passiveF39-TGR-MCL-R-A Reflector only active/passiveF39-TGR-MCL-R-P
Connection boxes
Order code
Connection box for Receivers and Transceivers F39-TGR-MCL-CMD Connection box for Transmitters F39-TGR-MCL-CML
Mounting brackets
Order code
Mounting bracket for one muting actuator F39-TGR-MCL-ST
Specifications
Power supply 24 VDC±20%
Consumption 5 W max (F39-TGR-MCL-_ only)
Ambient temperature During operation -10 to + 55°C (with no dew condensation)
Cable connectorLength 30 cm pre-wired RX M12 5-pin female TX M12 5-pin female
Degree of protectionIP65
Distance between muting beams250mm
F39-TGR-MCLOptical data Through-beam system
Operating distance0 … 7 m max. 0 … 8,4 m
Light source Red emitting LEDs, Wavelength 630 nm
F39-TGR-MCL-ROptical data Polarized retro-reflective system
Operating distance0 … 4 m max. 0 … 4,8 m
Light source Red emitting LEDs, Wavelength 660 nm
Configuration examples
L-muting, active/active
1) Safety sensor (e.g. F3S-TGR-CL4A-K2-500)
2) Muting actuators F39-TGR-MCL
3) Connector box F39-TGR-MCL-CML
4) Connector box F39-TGR-MCL-CMD
1
L-muting, active/passive
1) Safety Sensor (e.g. F3S-TGR-CL4A-K2C-500)
2) Muting actuators F39-TGR-MCL-R
3) Connection box F39-TGR-MCL-CMD
1
3
2 4 2 3
487


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
