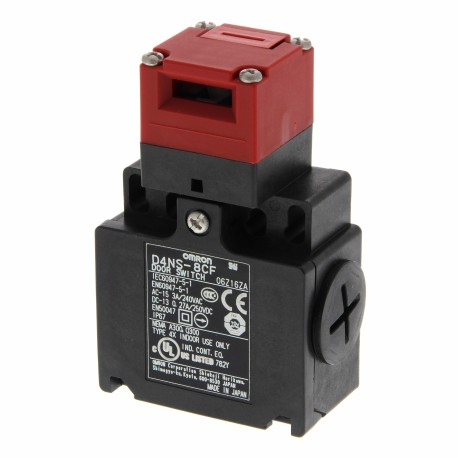

OMRON D4NS-8CF D4NS-8CF D4NS0036M D4NS8CF OMRON Plastic 2NC/1NO 2-M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NS-8CF D4NS0036M D4NS8CF OMRON Plastic 2NC/1NO 2-M20

D4NS-8CF

D4NS0036M

D4NS8CF

OMRON

1 Pcs.

Plastic 2NC/1NO 2-M20 Safety-door switch, Plastic, Tongue operated, M20 (2-conduit), 2NC/1NO (slow-action)

Automation > Position switch with separate actuator
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4NS-8CF plastic safety position switch provides reliable interlocking for machine guards and safety doors in industrial automation environments. Devices of this category are commonly integrated into safety circuits to halt machinery operations when protective barriers are opened or removed.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 56 mm
  • Height of sensor (EF007283): 30 mm
  • Length of sensor (EF007334): 88 mm

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingResinMaterial headResinAmbient temperature (operating)-30-70 °CDirection of operationAdjustableDoor contacts NC2Door contacts NO1Switch actionSlow actionMake before breakLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits2ShapeCuboidOverall length of sensor88 mmHeight of sensor30 mmWidth of sensor56 mm
