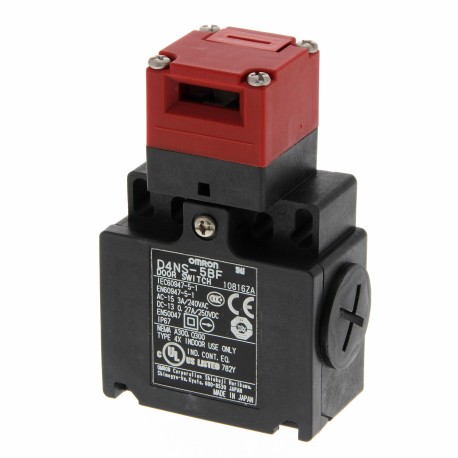

OMRON D4NS-5BF D4NS-5BF D4NS0029H D4NS5BF OMRON Plastic 2NC 2-PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NS-5BF D4NS0029H D4NS5BF OMRON Plastic 2NC 2-PG13,5

D4NS-5BF

D4NS0029H

D4NS5BF

OMRON

1 Pcs.

Plastic 2NC 2-PG13,5 Safety interlock switch, PG13.5 (2-conduit), 2NC (slow-action)

Automation > Position switch with separate actuator
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a safety position switch, the Omron D4NS-5BF detects the open or closed status of protective machine guards to prevent unexpected hazards. Such switches are deployed across automated production cells and robotic enclosures to enforce strict interlocking safety protocols.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry PG
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 56 mm
  • Height of sensor (EF007283): 30 mm
  • Length of sensor (EF007334): 88 mm

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingResinMaterial headResinAmbient temperature (operating)-30-70 °CDirection of operationAdjustableDoor contacts NC2Door contacts NO0Switch actionSlow actionMake before breakLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizePG13.5Number of conduits2ShapeCuboidOverall length of sensor88 mmHeight of sensor30 mmWidth of sensor56 mm
