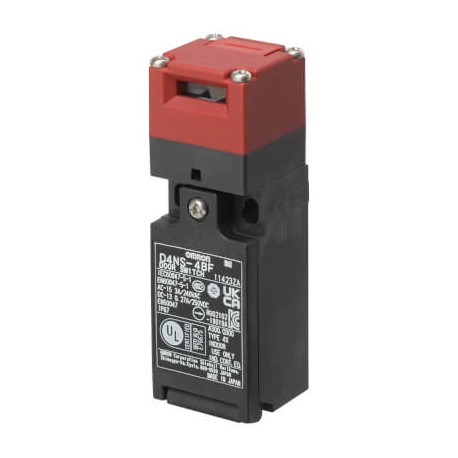

OMRON D4NS-4BF D4NS-4BF D4NS0008E D4NS4BF OMRON Plastic 2NC M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NS-4BF D4NS0008E D4NS4BF OMRON Plastic 2NC M20

D4NS-4BF

D4NS0008E

D4NS4BF

OMRON

1 Pcs.

Plastic 2NC M20 Safety-door switch, Plastic, Tongue operated, M20 (1-conduit), 2NC (slow-action)

Automation > Position switch with separate actuator
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

D4NS-4BF is an Omron plastic 2nc m20 safety door switch applied across industrial machinery to detect the open or closed status of movable physical guards. It breaks safety circuits immediately upon actuation to protect operators from ongoing machine cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 31 mm
  • Height of sensor (EF007283): 30 mm
  • Length of sensor (EF007334): 96 mm

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingResinMaterial headResinAmbient temperature (operating)-30-70 °CDirection of operationAdjustableDoor contacts NC2Door contacts NO0Switch actionSlow actionMake before breakLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor96 mmHeight of sensor30 mmWidth of sensor31 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
