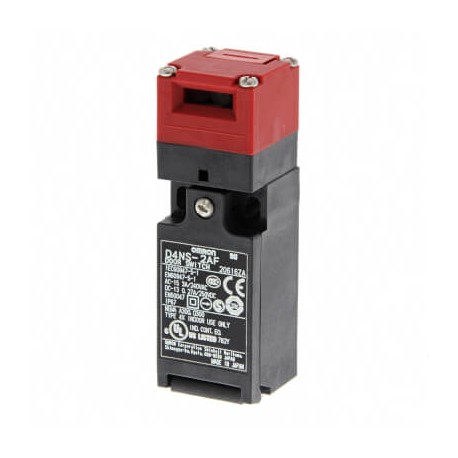

OMRON D4NS-2AF D4NS-2AF D4NS0002F D4NS2AF OMRON Plastic 1NC/1NO G1/2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NS-2AF D4NS0002F D4NS2AF OMRON Plastic 1NC/1NO G1/2

D4NS-2AF

D4NS0002F

D4NS2AF

OMRON

1 Pcs.

Plastic 1NC/1NO G1/2 Safety interlock switch, 1NC/1NO, 10 A, single G1/2 conduit

Automation > Position switch with separate actuator
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron D4NS-2AF safety position switch offers dependable interlocking functionality for protective doors and removable safety fencing in industrial plants. These components help maintain workplace safety standards by cutting off power to hazardous machinery when barriers open. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A
  • Number of contacts as normally closed contact (EF008255): 1
  • Width sensor (EF007094): 31 mm
  • Height of sensor (EF007283): 30 mm
  • Length of sensor (EF007334): 96 mm
  • Ambient temperature during operating (EF007515): -30 °C

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingResinMaterial headResinAmbient temperature (operating)-30-70 °CDirection of operationAdjustableDoor contacts NC1Door contacts NO1Switch actionSlow actionMake before breakLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeG1/2Number of conduits1ShapeCuboidOverall length of sensor96 mmHeight of sensor30 mmWidth of sensor31 mm
