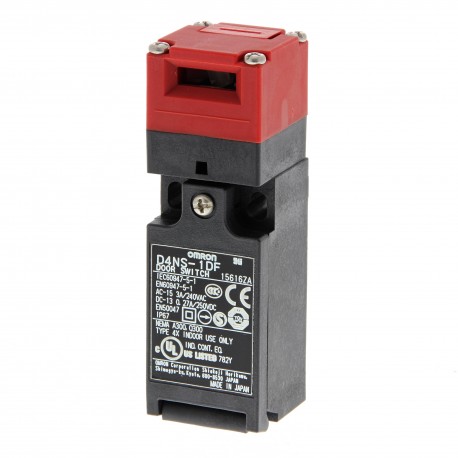

OMRON D4NS-1DF D4NS-1DF D4NS0013A D4NS1DF OMRON Plastic 3nc contact forms PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NS-1DF D4NS0013A D4NS1DF OMRON Plastic 3nc contact forms PG13,5

D4NS-1DF

D4NS0013A

D4NS1DF

OMRON

1 Pcs.

Plastic 3nc contact forms PG13,5 Safety-door switch, Plastic, Tongue operated, PG13.5 (1-conduit), 3NC (slow-action)

Automation > Position switch with separate actuator
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4NS-1DF is a safety switch engineered to safeguard personnel by locking or monitoring mechanical protective enclosures on automated plants. These devices connect directly to machine control logic to ensure operations halt immediately if a safety perimeter is breached. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry PG
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A
  • Number of contacts as normally closed contact (EF008255): 3
  • Width sensor (EF007094): 31 mm
  • Height of sensor (EF007283): 30 mm
  • Length of sensor (EF007334): 96 mm

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingResinMaterial headResinAmbient temperature (operating)-30-70 °CDirection of operationAdjustableDoor contacts NC3Door contacts NO0Switch actionSlow actionMake before breakLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizePG13.5Number of conduits1ShapeCuboidOverall length of sensor96 mmHeight of sensor30 mmWidth of sensor31 mm
