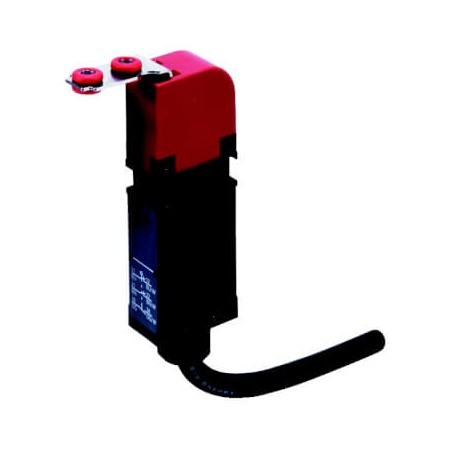

OMRON D4GS-N2T D4GS-N2T D4GS0026M D4GSN2T OMRON Input pin vertical 2NC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4GS-N2T D4GS0026M D4GSN2T OMRON Input pin vertical 2NC

D4GS-N2T

D4GS0026M

D4GSN2T

OMRON

1 Pcs.

Input pin vertical 2NC Safety door switch, IP67, 2NC (slow-action), vertical key insertion, 1m cable

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for safety circuit integration, vertical input pin safety switches are used on machine doors and access panels to verify that protective barriers remain closed during processing cycles. The Omron D4GS-N2T delivers dependable slow-action switching inside a compact cuboid housing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): With cable preassembled
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.75 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 30 mm
  • Height of sensor (EF007283): 17 mm
  • Length of sensor (EF007334): 85 mm

More info

▲
Door switch typeKey-operatedGuard-lockAmbient temperature (operating)-30-70 °CDirection of operationVerticalDoor contacts NC2Door contacts NO0LED indicatorConnection methodCableCable length1 mDegree of protection (IP)IP67Conduit sizeNot ApplicableNumber of conduits0Switch actionSlow actionShapeCuboidOverall length of sensor85 mmHeight of sensor17 mmWidth of sensor30 mm
