View larger
Images are for illustrative purposes only. Please refer to data sheet for details

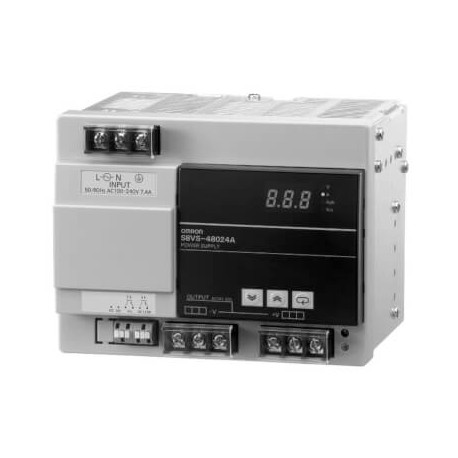

S8VS-48024A S8VS0167E S8VS48024A,1 OMRON 480W / 24V / 20A DIN Rail
S8VS-48024A
S8VS0167E
S8VS48024A.1
OMRON
1 Pcs.
480W / 24V / 20A DIN Rail
Power supply, 480 W, 100 to 240 VAC input, 24 VDC, 20 A output, DIN rail mounting, digital display running voltage and current, peak current, and fore
Power supply, 480 W, 100 to 240 VAC input, 24 VDC, 20 A output, DIN rail mounting, digital display running voltage and current, peak current, and forecast monitoring function with settable alarm point
Automation > DC-power supply
S8VS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
TypeDIN-railMounting methodDIN railPhaseSingleOutput voltage24 VPower output480 WEfficiency93 %Rated output current20 ATemperature range-10-60 °CTerminal typeScrewCommunication port(s)NoneAlarm functionTransistor - sinking, Transistor - sourcingNumber of output branches1Rated supply voltage at AC 50 Hz100-240 VAllowable supply voltage AC85-264 VAllowable supply voltage DC80-370 VProduct Width (unpacked)151.2 mmProduct Height (unpacked)120 mmProduct Depth (unpacked)127.2 mm
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | Other |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Wall mounting possible (EF003973) | No |
| Secondary voltage adjustable (EF007002) | Yes |
| Modular version (EF001126) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Stabilized (EF005302) | Yes |
| Output voltage stabilized (EF003092) | Yes |
| Direct mounting possible (EF005689) | No |
| Suitable for safety functions (EF001597) | Yes |
| Short-circuit-proof (EF007332) | No |
| Power consumption (EF000346) | 560 VA |
| Width in number of modular spacings (EF002950) | 1 |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Width (EF000008) | 150 mm |
| Depth (EF000049) | 127.2 mm |
| Max. output current 1 (EF008284) | 20 A |
| Built-in height (EF000332) | 127.2 mm |
| Built-in width (EF000846) | 150.000 mm |
| Height (EF000040) | 115 mm |
| Power output (EF003034) | 480 W |
| Nominal value output current 1 (EF009396) | 20 A |
| Rated supply voltage AC 60 Hz (EF007077) | 100 V |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| 1st secondary output voltage (EF006792) | 21.6 V |
