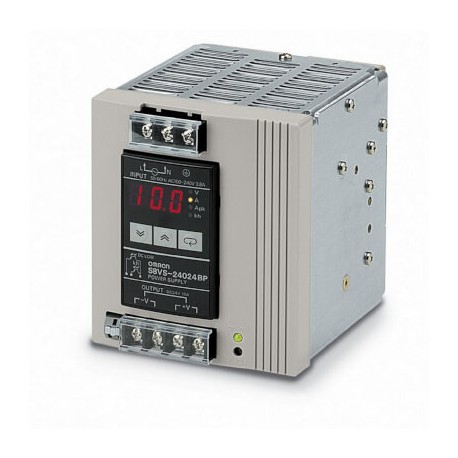

S8VS-24024BP S8VS0129B S8VS24024BP,1 OMRON 240W / 24V / 10A DIN Display Time func. Alarm PNP
S8VS-24024BP
S8VS0129B
S8VS24024BP.1
OMRON
1 Pcs.
240W / 24V / 10A DIN Display Time func. Alarm PNP
Power supply, 240 W, 100-240 VAC input, 24 VDC, 10 A output, DIN rail mounting, digital display with running voltage and current, peak current, and to
Power supply, 240 W, 100-240 VAC input, 24 VDC, 10 A output, DIN rail mounting, digital display with running voltage and current, peak current, and total run time function with settable alarm point
Automation > DC-power supply
S8VS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
TypeDIN-railMounting methodDIN railPhaseSingleOutput voltage24 VPower output240 WEfficiency88 %Rated output current10 ATemperature range25-85 °CTerminal typeScrewCommunication port(s)NoneAlarm functionTransistor - sourcingNumber of output branches1Rated supply voltage at AC 50 Hz100-240 VAllowable supply voltage AC85-264 VAllowable supply voltage DC80-370 VProduct Width (unpacked)100 mmProduct Height (unpacked)115 mmProduct Depth (unpacked)125.2 mm
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | Other |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Wall mounting possible (EF003973) | Yes |
| Secondary voltage adjustable (EF007002) | Yes |
| Modular version (EF001126) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Stabilized (EF005302) | Yes |
| Output voltage stabilized (EF003092) | Yes |
| Direct mounting possible (EF005689) | No |
| Suitable for safety functions (EF001597) | Yes |
| Short-circuit-proof (EF007332) | No |
| Power consumption (EF000346) | 300 VA |
| Width in number of modular spacings (EF002950) | 1 |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Width (EF000008) | 100 mm |
| Depth (EF000049) | 125.2 mm |
| Max. output current 1 (EF008284) | 10 A |
| Built-in height (EF000332) | 125.3 mm |
| Built-in width (EF000846) | 100.000 mm |
| Height (EF000040) | 115 mm |
| Power output (EF003034) | 240 W |
| Nominal value output current 1 (EF009396) | 10 A |
| Rated supply voltage AC 60 Hz (EF007077) | 100 V |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| 1st secondary output voltage (EF006792) | 21.6 V |
