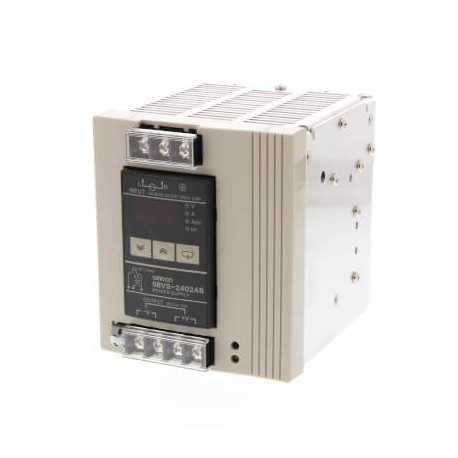

OMRON S8VS-24024B S8VS-24024B S8VS0125M S8VS24024B,1 OMRON 240W / 24V / 10A DIN Rail Display-Time func. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S8VS-24024B S8VS0125M S8VS24024B,1 OMRON 240W / 24V / 10A DIN Rail Display-Time func.

S8VS-24024B

S8VS0125M

S8VS24024B.1

OMRON

1 Pcs.

240W / 24V / 10A DIN Rail Display-Time func. Power supply, 240 W, 100 to 240 VAC input, 24VDC 10 A output, DIN rail mounting, digital display with running voltage and current, peak current, and t Power supply, 240 W, 100 to 240 VAC input, 24VDC 10 A output, DIN rail mounting, digital display with running voltage and current, peak current, and total run time function with settable alarm point

Automation > DC-power supply
S8VS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron S8VS-24024B S8VS0125M S8VS24024B,1 OMRON 240W / 24V / 10A DIN Rail Display-Time func. unit converts grid power while providing diagnostic information for industrial control schemes. Such switch-mode supplies feed automation networks, ensuring steady operation for high-draw sensors, actuators, and logic hardware.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (supply voltage) (EF002991): AC
  • Type of electric connection (EF003961): Screw connection
  • Wall mounting possible (EF003973): Yes
  • Secondary voltage adjustable (EF007002): Yes
  • Modular version (EF001126): Yes
  • Suitable for rail mounting (EF003972): Yes
  • Stabilized (EF005302): Yes
  • Output voltage stabilized (EF003092): Yes
  • Direct mounting possible (EF005689): No
  • Suitable for safety functions (EF001597): Yes
  • Short-circuit-proof (EF007332): No
  • Power consumption (EF000346): 300 VA
  • Width in number of modular spacings (EF002950): 1
  • Nominal value output voltage 1 (EF009393): 24 V
  • Width (EF000008): 100 mm
  • Depth (EF000049): 125.2 mm

More info

▲
TypeDIN-railMounting methodDIN railPhaseSingleOutput voltage24 VPower output240 WEfficiency88 %Rated output current10 ATemperature range25-85 °CTerminal typeScrewCommunication port(s)NoneAlarm functionTransistor - sinkingNumber of output branches1Rated supply voltage at AC 50 Hz100-240 VAllowable supply voltage AC85-264 VAllowable supply voltage DC80-370 VProduct Width (unpacked)100 mmProduct Height (unpacked)115 mmProduct Depth (unpacked)125.2 mm
