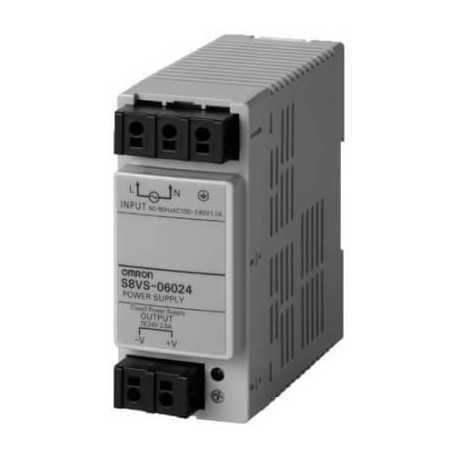

OMRON S8VS-06024 S8VS-06024 S8VS0068G S8VS06024,1 OMRON 60W / 24V / 2.5 A DIN-Rail View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S8VS-06024 S8VS0068G S8VS06024,1 OMRON 60W / 24V / 2.5 A DIN-Rail

S8VS-06024

S8VS0068G

S8VS06024.1

OMRON

1 Pcs.

60W / 24V / 2.5 A DIN-Rail Power supply, 60 W, 100-240 VAC input, 24 VDC, 2.5 A output, DIN rail mounting, basic model

Automation > DC-power supply
S8VS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron 60W / 24V / 2.5 A DIN-Rail, part number S8VS-06024 S8VS0068G S8VS06024,1 OMRON 60W / 24V / 2.5 A DIN-Rail, is a switched-mode power supply designed for mounting on standard industrial rails. These devices convert standard grid voltages into clean DC power for PLCs, HMIs, and associated automation peripherals. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (supply voltage) (EF002991): AC
  • Type of electric connection (EF003961): Screw connection
  • Wall mounting possible (EF003973): Yes
  • Secondary voltage adjustable (EF007002): Yes
  • Modular version (EF001126): Yes
  • Suitable for rail mounting (EF003972): Yes
  • Stabilized (EF005302): Yes
  • Output voltage stabilized (EF003092): Yes
  • Direct mounting possible (EF005689): No
  • Suitable for safety functions (EF001597): Yes
  • Short-circuit-proof (EF007332): No
  • Power consumption (EF000346): 136 VA
  • Width in number of modular spacings (EF002950): 1
  • Nominal value output voltage 1 (EF009393): 24 V
  • Width (EF000008): 40 mm
  • Depth (EF000049): 108.3 mm

More info

▲
TypeDIN-railMounting methodDIN railPhaseSingleOutput voltage24 VPower output60 WEfficiency83 %Rated output current2.5 ATemperature range-10-60 °CFeaturesUL class 2Terminal typeScrewCommunication port(s)NoneAlarm function-Number of output branches1Rated supply voltage at AC 50 Hz100-240 VAllowable supply voltage AC85-264 VAllowable supply voltage DC80-370 VProduct Width (unpacked)40 mmProduct Height (unpacked)99.5 mmProduct Depth (unpacked)108.3 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
