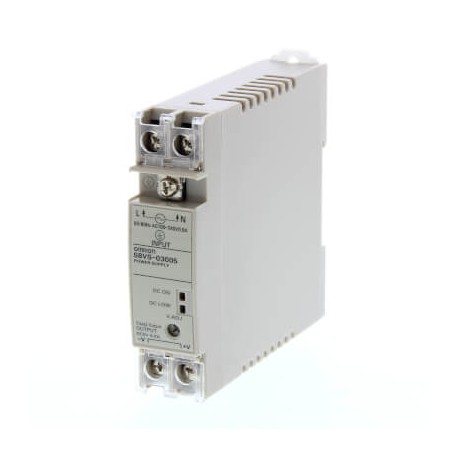

S8VS-03005 S8VS0159D S8VS03005,1 OMRON 30W / 5V / 4A 22.5 mm DIN Rail
S8VS-03005
S8VS0159D
S8VS03005.1
OMRON
1 Pcs.
Automation > DC-power supply
S8VS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron S8VS-03005 DIN-rail power supplies provide compact and efficient voltage conversion for modern industrial control cabinets. These miniature power units ensure stable operation for low-wattage logic controllers, interface modules, and instrumentation loops.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type: DIN-rail
- Mounting method: DIN rail
- Phase: Single
- Power output: 30 W
- Efficiency: 74 %
- Output voltage: 5 V
- Rated output current: 4 A
- Temperature range: -10-60 °C
- Features: UL class 2
- Terminal type: Screw
- Number of output branches: 1
- Rated supply voltage at AC 50 Hz: 100-240 V
- Allowable supply voltage AC: 85-264 V
- Allowable supply voltage DC: 80-370 V
- Product Width (unpacked): 22.5 mm
- Product Height (unpacked): 94.6 mm
More info
▲Specifications
| Type | DIN-rail |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 30 W |
| Efficiency | 74 % |
| Output voltage | 5 V |
| Rated output current | 4 A |
| Temperature range | -10-60 °C |
| Features | UL class 2 |
| Terminal type | Screw |
| Communication port(s) | None |
| Alarm function | - |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Product Width (unpacked) | 22.5 mm |
| Product Height (unpacked) | 94.6 mm |
| Product Depth (unpacked) | 96.4 mm |
