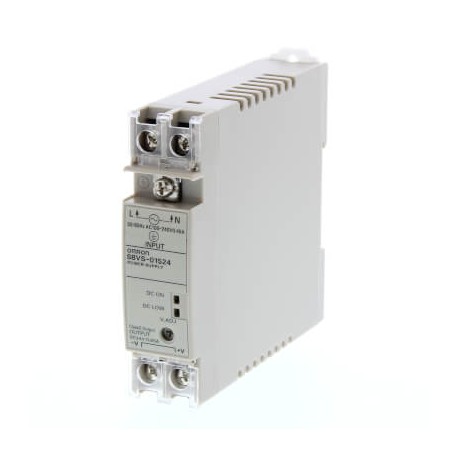

OMRON S8VS-01524 S8VS-01524 S8VS0158F S8VS01524,1 OMRON 15W / 24V / 0.65 TO 22.5 mm DIN Rail View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S8VS-01524 S8VS0158F S8VS01524,1 OMRON 15W / 24V / 0.65 TO 22.5 mm DIN Rail

S8VS-01524

S8VS0158F

S8VS01524.1

OMRON

1 Pcs.

15W / 24V / 0.65 TO 22.5 mm DIN Rail Power supply, plastic case, 22.5 mm wide DIN rail or direct panel mounting, 100/240 VAC supply, 15 W, 24 VDC, 0.65 A output

Automation > DC-power supply
S8VS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
TypeDIN-railMounting methodDIN railPhaseSingleOutput voltage24 VPower output15 WEfficiency80 %Rated output current0.65 ATemperature range-10-60 °CFeaturesUL class 2Terminal typeScrewCommunication port(s)NoneAlarm function-Number of output branches1Rated supply voltage at AC 50 Hz100-240 VAllowable supply voltage AC85-264 VAllowable supply voltage DC80-370 VProduct Width (unpacked)22.5 mmProduct Height (unpacked)94.6 mmProduct Depth (unpacked)96.4 mm
ETIM for 307948 Low-voltage industrial controls and switchgear (EC002540)
Feature Name Feature Value
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) Other
Performance level according to EN ISO 13849-1 (EF007399) None
SIL according to IEC 61508 (EF009889) None
Voltage type (supply voltage) (EF002991) AC
Type of electric connection (EF003961) Screw connection
Wall mounting possible (EF003973) Yes
Secondary voltage adjustable (EF007002) Yes
Modular version (EF001126) Yes
Suitable for rail mounting (EF003972) Yes
Stabilized (EF005302) Yes
Output voltage stabilized (EF003092) Yes
Direct mounting possible (EF005689) No
Suitable for safety functions (EF001597) Yes
Short-circuit-proof (EF007332) No
Power consumption (EF000346) 44 VA
Width in number of modular spacings (EF002950) 1
Nominal value output voltage 1 (EF009393) 24 V
Width (EF000008) 22.5 mm
Depth (EF000049) 96.4 mm
Max. output current 1 (EF008284) 0.65 A
Built-in height (EF000332) 96.4 mm
Built-in width (EF000846) 22.5 mm
Height (EF000040) 85 mm
Power output (EF003034) 15 W
Nominal value output current 1 (EF009396) 0.65 A
Rated supply voltage AC 60 Hz (EF007077) 100 V
Rated supply voltage AC 50 Hz (EF007076) 100 V
1st secondary output voltage (EF006792) 21.6 V
