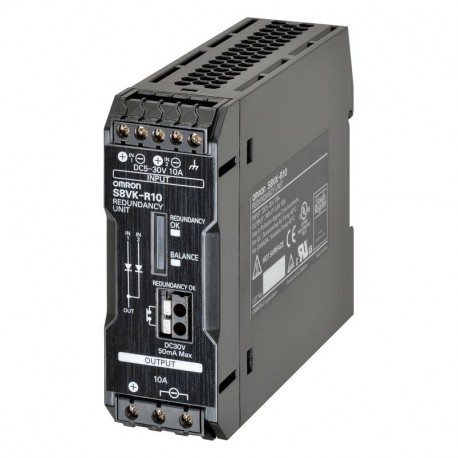

OMRON S8VK-R10 S8VK-R10 S8VK4000M S8VKR10 OMRON Module Redundancy 10A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S8VK-R10 S8VK4000M S8VKR10 OMRON Module Redundancy 10A

S8VK-R10

S8VK4000M

S8VKR10

OMRON

1 Pcs.

Module Redundancy 10A Redundancy module for S8VK (input 5-30VDC, output 10A)

Automation > Accessories/spare parts for low-voltage switch technology
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron S8VK-R10 S8VK4000M S8VKR10 OMRON Module Redundancy 10A acts as a power distribution management module designed to decouple redundant power supplies and prevent system downtime during power source failures. Redundancy modules automatically balance loads and maintain continuous power delivery in critical automation applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 5 to 30 VDC: 10 A
  • 10 to 60 VDC: 20 A
  • Rated Input Voltage: 5 to 30 V
  • Output Current: 10 A
  • Voltage Drop: 0.7 V max at 10 A
  • Operation Temperature range: -40 to 70°C
  • Safety Standard: UL 60950-1, UL 508, cURus, cULus, EN 50178, EN 60950-1
  • Signal output: 30 VDC 50 mA max by Photo MOS Relay
  • Redundancy OK Indicator: LED (Green), The function to know the both of PS operate normally.
  • Voltage Balance Indicator: LED (Green), The function to help to get the balance of 2 unit PS output voltage
  • Accessory (EF013236): Yes
  • Spare part (EF013237): No

More info

▲
  • Redundancy operating LED for status confirmation
  • Signal output for failure detection of power supplies
  • Operation temperature range: -40 to 70°C
  • Double your operational lifetime by adjusting the power supply voltage to light-up the Balance LED
  • Power Boost function is possible when used withS8VK-Gseries power supplies

Specifications & ordering info

Ordering information

Input voltage

Output current

Size (W × H × D) [mm]

Order code

Standard models

Coated models

5 to 30 VDC

10 A

32 × 90 × 110

S8VK-R10

S8VK-R10-400

10 to 60 VDC

20 A

40 × 125 × 113

S8VK-R20

S8VK-R20-400

Specifications

Type

S8VK-R10

S8VK-R20

Rated Input Voltage

5 to 30 V

10 to 60 V

Output Current

10 A

20 A

Voltage Drop

0.7 V max at 10 A

0.9 V max at 20 A

Operation Temperature range

-40 to 70°C

-40 to 70°C

Safety Standard

UL 60950-1, UL 508, cURus, cULus, EN 50178, EN 60950-1

Signal output

30 VDC 50 mA max by Photo MOS Relay

Redundancy OK Indicator

LED (Green), The function to know the both of PS operate normally.

Voltage Balance Indicator

LED (Green), The function to help to get the balance of 2 unit PS output voltage

Grounding terminal

-

Yes, One for Chassis grounding
