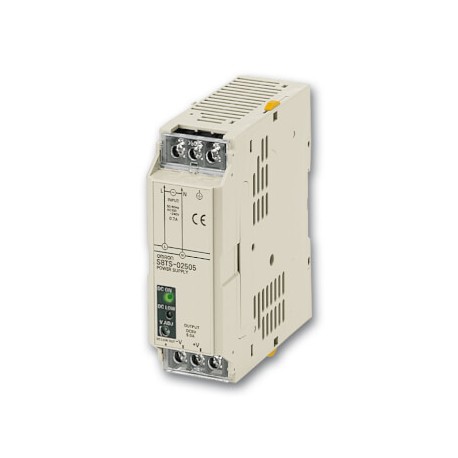

Images are for illustrative purposes only. Please refer to data sheet for details

S8T-BUS03 S8TS0047G S8TBUS03,1 OMRON POWER SUPPLY SINGLE-PHASE

S8T-BUS03

S8TS0047G

S8TBUS03.1

OMRON

1 Pcs.

POWER SUPPLY SINGLE-PHASE SINGLE-PHASE POWER SUPPLY

Automation > Accessories/spare parts for low-voltage switch technology
S8TS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron single-phase power supply bus accessory (S8T-BUS03) facilitates efficient power distribution and bridging between modular DIN-rail power supplies within industrial control panels. Such components reduce discrete wiring requirements and ensure secure electrical connectivity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 24 V: 2.5 A
  • 12 V: 2.5 A
  • 5 V: 5 A
  • Efficiency: 62% min.
  • Power factor: 0.8 min.
  • Input voltage: 100 to 240 VAC, (85 to 264 VAC), single-phase
  • Output voltage: Voltage adjustment
  • Ripple: 2% (p-p) max.
  • Input variation: 0.5% max.
  • Temperature influence: 0.05%/°C max. (with rated input, 10 to 100% load)
  • Overcurrent protection: 105 to 125% of rated load current, inverted L drop, automatic reset
  • Overvoltage protection: yes
  • Output indicator: yes (green)
  • Weight: 450 g max.
  • Series operation: yes
  • Parallel operation: no

More info

▲
Features

Industrial use, modular power supply for multiple configurations

The S8TS is an expandable power supply; standard units can easily be snapped together in parallel to provide you with ultimate flexibility. Expandable up to 4 units, it can deliver a total power of 240W at 24VDC or a multi-output configuration.

  • Improves system reliability by building up N+1 redundancy
  • Standard unit; 60 W at 24 VDC, 30 W at 12 VDC and 25 W at 5 VDC
  • Battery back-up unit protects against power outage
  • Buffer unit protects against power glitches and outage
  • EMI Class B, UL Class 2, UL Class 1 division 2

Ordering information

Basic block

Order code

Output voltage

Output current

Screw terminal type

With bus line connectors1

Without bus line connectors2

24 V

2.5 A

S8TS-06024-E13

S8TS-06024

12 V

2.5 A

S8TS-03012-E1

−

5 V

5 A

−

S8TS-02505

  • Note•There are other models available on request. Please contact your Omron representative for special request.
  • •There are Bus line connector accessories available on request. Please contact your Omron representative for special request.

Specifications

Item

5 V models

24/12 V models

Single operation

Single operation

Parallel operation

Efficiency

62% min.

24 V models: 75%, 12 V models: 70% min.

Power factor

0.8 min.

24 V models: 0.9 min., 12 V models: 0.8 min.

Input voltage

100 to 240 VAC, (85 to 264 VAC), single-phase

Output voltage

Voltage adjustment

5 V ±10% min.

24 V models: 22 to 28 V, 12 V models: 12 V ±10% min.

Ripple

2% (p-p) max.

2% (p-p) max.

2% (p-p) max.

Input variation

0.5% max.

−

−

Temperature influence

0.05%/°C max. (with rated input, 10 to 100% load)

Overcurrent protection

105 to 125% of rated load current, inverted L drop, automatic reset

Overvoltage protection

yes

yes

yes

Output indicator

yes (green)

yes (green)

yes (green)

Weight

450 g max.

450 g max.

450 g max.

Series operation

yes

yes

yes

Parallel operation

no

yes

yes

Size in mm (H×W×D)

120×43×120


1.One S8T-BUS01 connector and one S8T-BUS02 connector are included as accessories.
2.Bus line connectors can be ordered separately if necessary.
3.Conforms to EMI class B with DC minus terminal ground.

Product Datasheet
